MRCOOL DIY 4th Generation Mini Split 45K BTU 4 Zone Ductless Air Conditioner with Heat Pump and 25 Ft Install Kit - DIYM448HPW01C84

Call for availability
SKU: DIYM448HPW01C84
Save $704.00
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$5,796.00 Regular price$6,500.00

Description

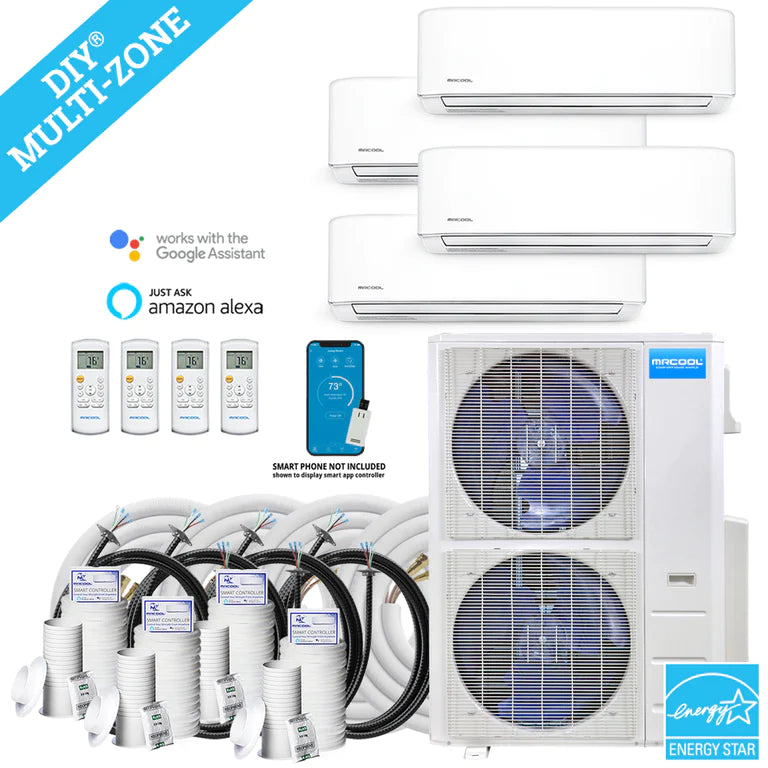

MRCOOL DIY 4th Generation Mini Split 45K BTU 4 Zone Ductless Air Conditioner with Heat Pump and 25 Ft Install Kit - DIYM448HPW01C84

The new 4th Generation MRCOOL DIY 48K BTU Ductless Heat Pump Condenser (DIY-MULTI5-48HP230C) that can support up to 5 zones. When paired with select MRCOOL air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. The MRCOOL DIY 9K and 18K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 and 750 sq. ft.

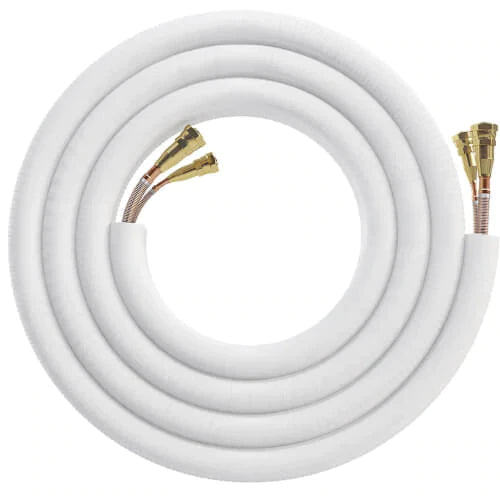

This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

PRODUCT INCLUDES:

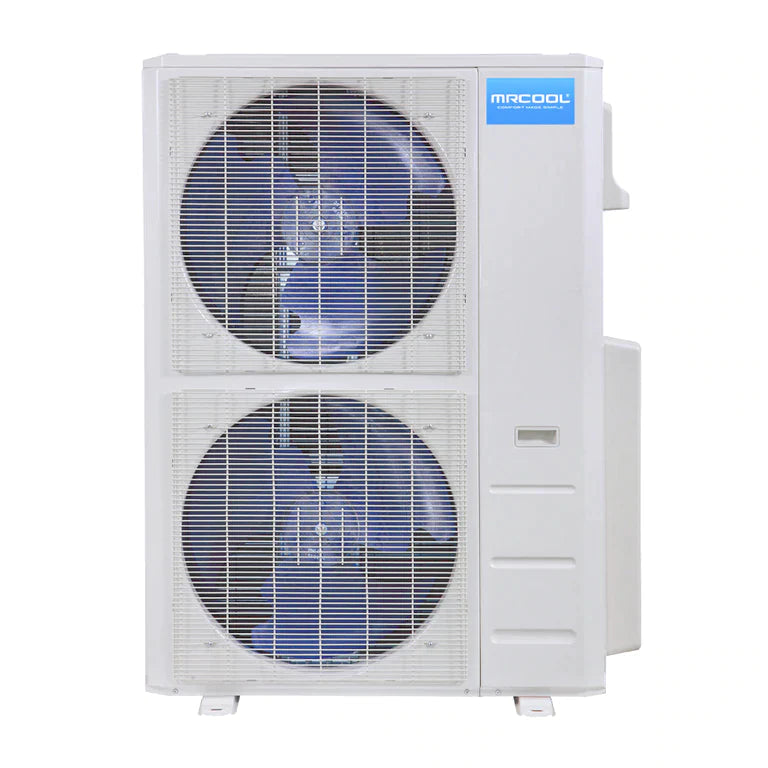

FEATURES CONDENSER DIY-MULTI5-48HP230C

  • Up to 20.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25 (x3)

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
  • This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system

SPECIFICATIONS CONDENSER DIY-MULTI5-48HP230C

Product Dimensions 37.48"W x 16.34"D x 52.48"H
Product Weight 222.89 lbs
SEER 20.5
EER 11
HSPF hspf4/hspf5 : 11/8.5
CFM 4500
Cooling Capacity 48000 BTU
Heating Capacity 48000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 60 A
Min Circuit Ampacity 40 A
Color White
Zone Capacity Up to 5
Refrigerant Type R-410A
Refrigerant Volume 162 oz
Decibel Rating 61.5 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat 5F ~ 75.2F
Max Lineset Length 246.06 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in +1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 900/850/800/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty: Limited Lifetime Compressor



SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25 (x3)

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 9000 BTU
Heating Capacity 9000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 375 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS AIR HANDLER DIY-18-HP-WMAH-230C25

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 34.61 lbs
Cooling Capacity 18000 BTU
Heating Capacity 18000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White
Max Coverage Area Up to 750 sqft
Refrigerant Type R-410A
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1120/950/700
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS LINE SET DIY25-1412 (x4)

COLOR

Copper

COLOR FAMILY

Bronze/Copper Metallic

LINESET FITTING TYPE

Quick-Connection

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

REGISTERED WARRANTY

N/A

HAS BATTERIES

No

CONTAINS ELECTRONICS

No

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET WEIGHT

19.84 lbs

GROSS WEIGHT

22.92 lbs



PRODUCT MANUALS:

CONDENSER MANUALS

9K AIR HANDLER MANUALS

18K AIR HANDLER MANUALS
