Description
Accucold 20" Wide Built-In Healthcare All-Refrigerator ADA Compliant - ADA404REFCAL
Accucold offers a quality selection of 20" wide built-in under-counter all-refrigerators designed for installation under lower ADA compliant counters and for the storage of vaccines and medical supplies.

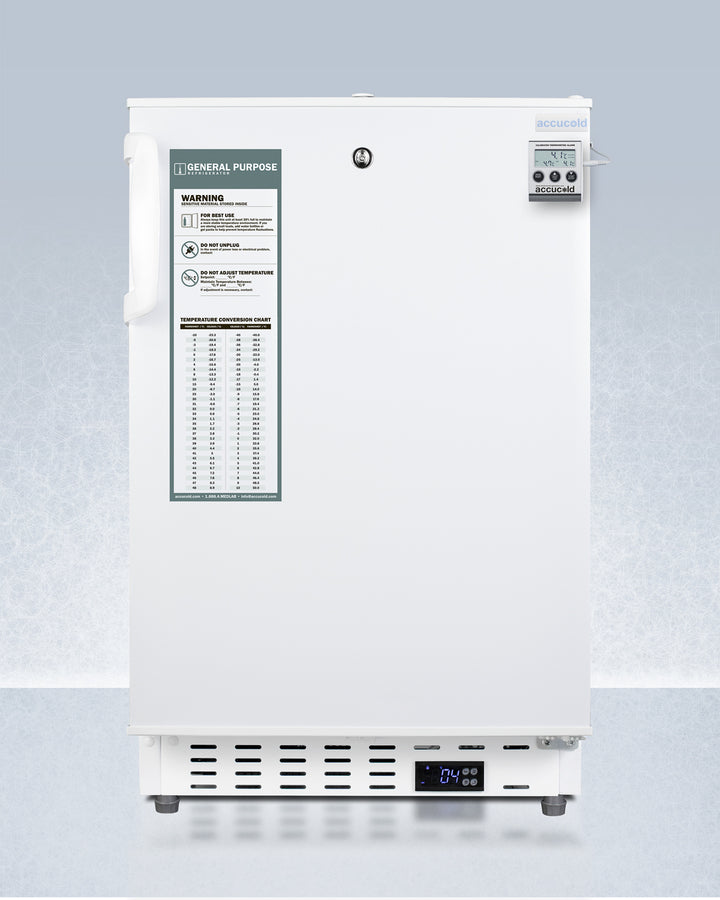

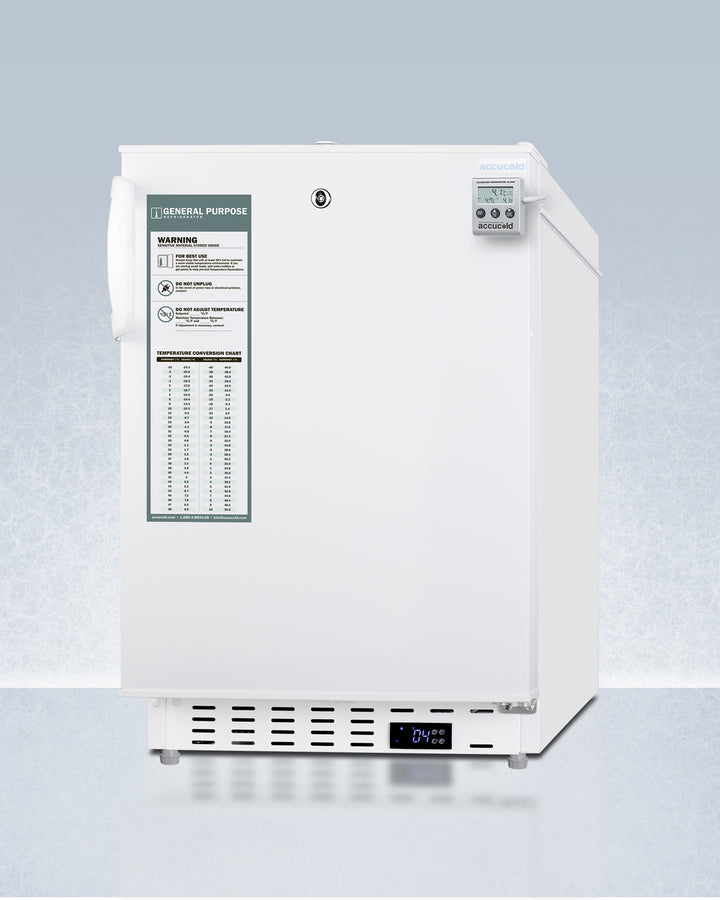

The ADA404REFCAL is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access.
A digital thermostat, located in the kick-plate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high-traffic areas. Powerful magnetic gaskets ensure a tight seal. This model comes with a right-hand door swing. (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)
The ADA404REFCAL is designed to operate between +2°C and +8°C as recommended for the storage of vaccines, select pharmaceuticals, and other medical supplies. For optimum temperature management, a pre-installed NIST-certified thermometer is included and calibrated in our own ISO/IEC 17025:2017 certified laboratory to provide an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC and VFC).
The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filed bottle and secured on the left wall of the interior cabinet to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. A certificate of calibration for your facility's records is also included.

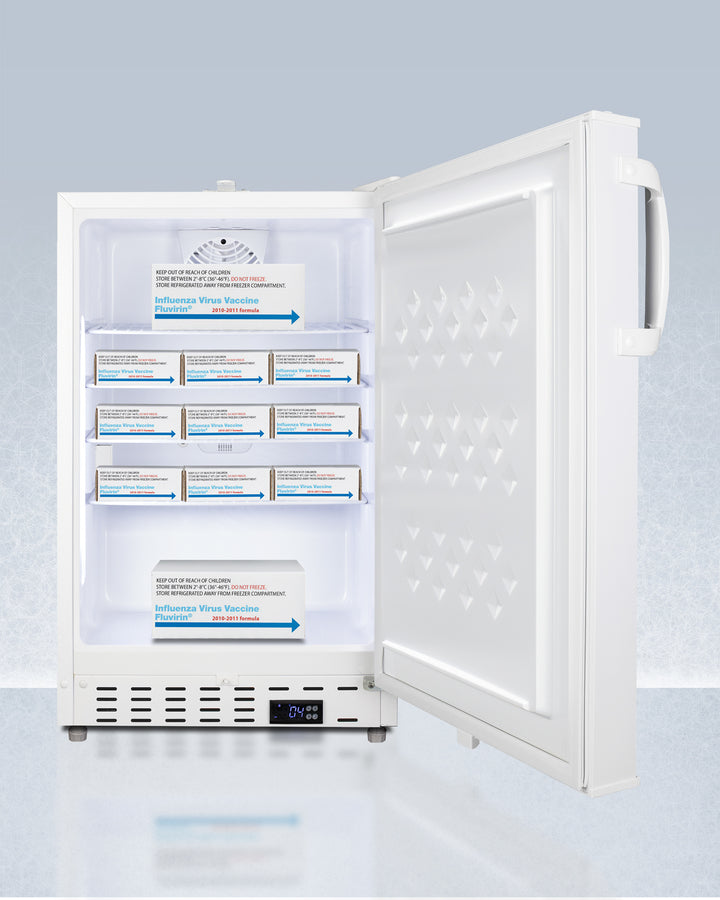

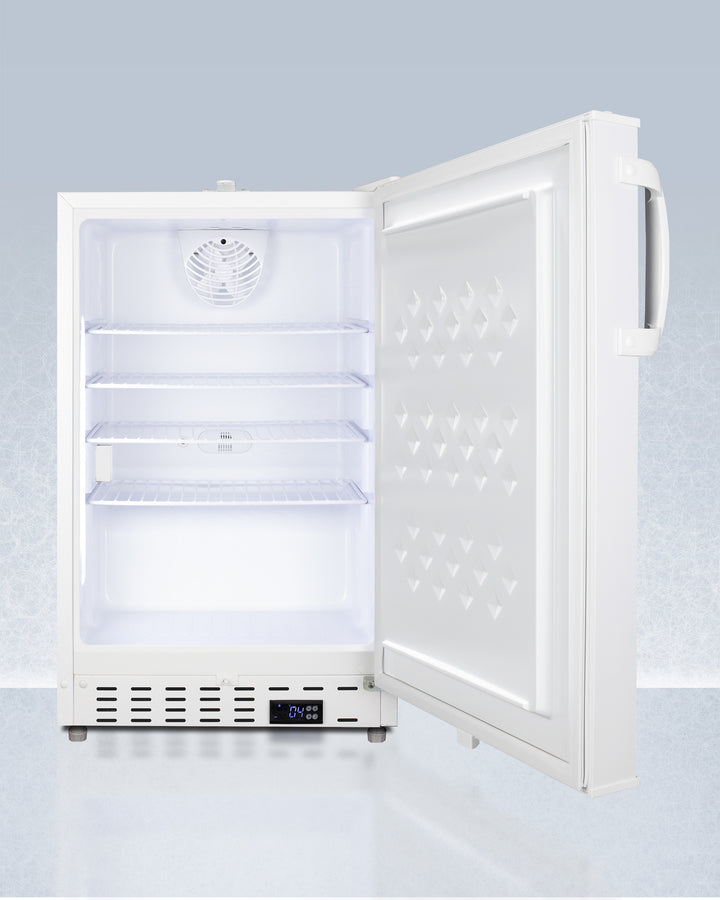

Inside, an LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu. ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs.
As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind but can be disabled depending on your needs.
Sized at just under 20" wide, the ADA404REFCAL is ETL-S listed to NSF-7 commercial standards and is the ideal storage solution for doctors' offices, clinics, and similar facilities.
Features
- ADA compliant design: 32" height allows easy installation under lower ADA compliant counters
- Built-in capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Commercially approved: Meets ETL-S to NSF-7 standards for use in commercial settings
- +2°C to +8°C operation: Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements
- NIST calibrated external temperature display: Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
- Certificate of calibration included: Calibrated to NIST standards in our ISO/IEC 17025:2017 certified laboratory, with a certificate included for your records
- Buffered temperature probe: Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines
- 3" thick door: Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- High/low temperature alarm: Audible alarm sounds if the interior temperature rises or falls out of set range
- Open door alarm: Audible alarm will sound if the door is left ajar for over a minute
- Right-hand door swing: Unit has a right-hand door swing (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)
- Factory-installed lock: Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

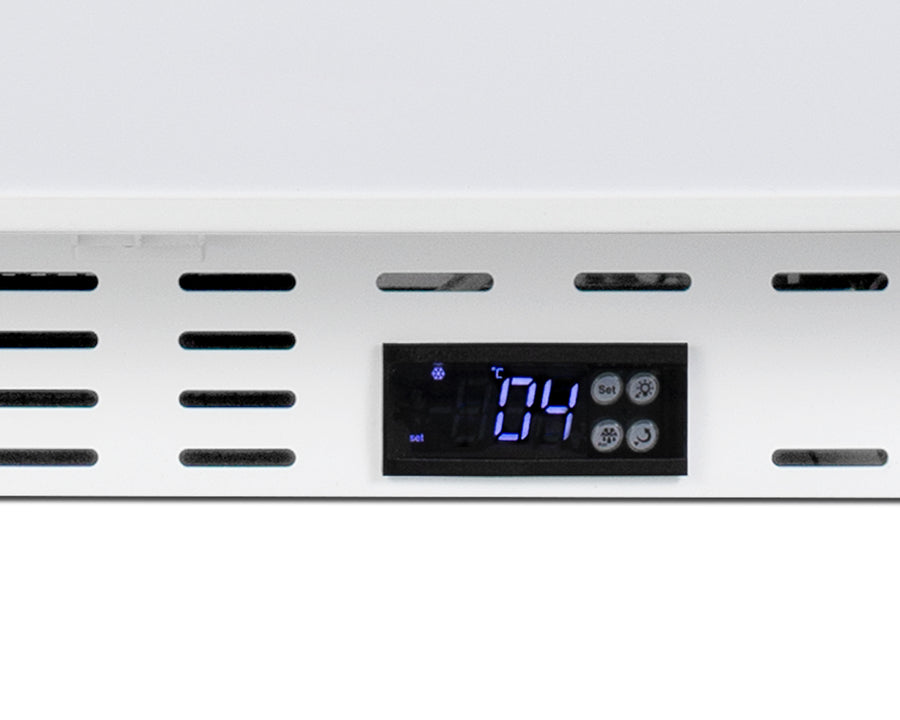

- Adjustable digital thermostat: Electronic controls located in the front kick-plate for easy & intuitive temperature management, with a readout in Fahrenheit or Celsius

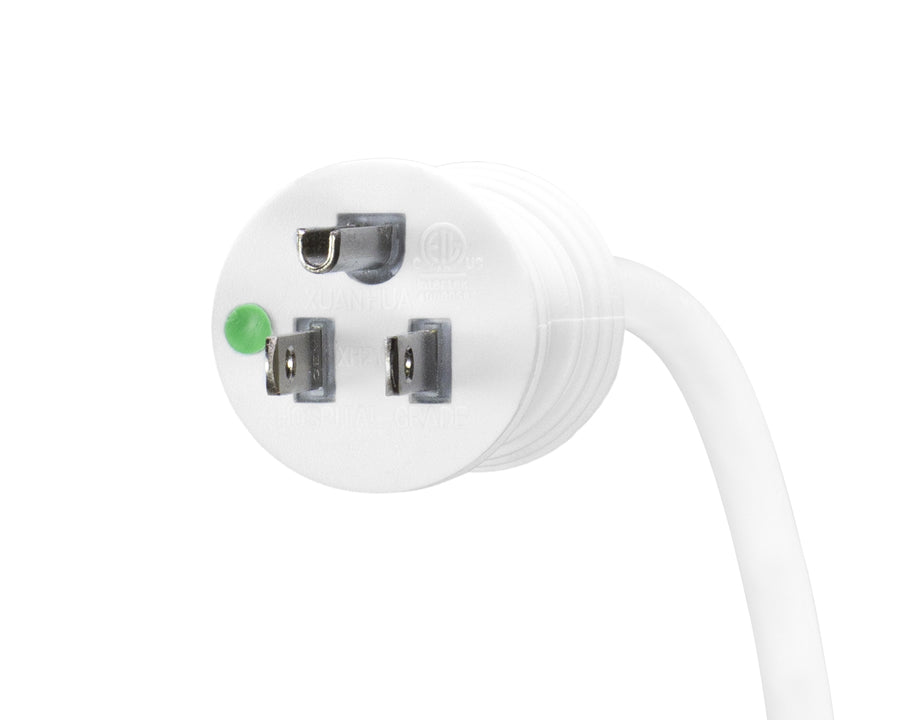

- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
- Automatic defrost: Reduced user maintenance with an auto defrost system
- Adjustable wire shelves: Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
- Internal fan: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Sealed back: Space-saving design that offers easier clean-ability
- Interior light: Front-located LED light ensures entire interior is lit when door opens
- Magnetic door gasket: Quality door gaskets ensure a tight seal for energy savings and improved performance
- Fully finished white cabinet: Allows the unit to be freestanding
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 31.75" (81 cm)
- Height to Hinge Cap: 32.0" (81 cm)
- Width: 19.75" (50 cm)
- Width with Door Open: 20.25" (51 cm)
- Depth: 22.5" (57 cm)
- Depth with Handle: 24.38" (62 cm)
- Depth with door at 90°: 40.25" (102 cm)
- Capacity: 3.32 cu.ft. (94 L)
- Defrost Type: Automatic
- Door: White
- Cabinet: White
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Sanitation: ETL-S
- Amps: 1.1
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 59.0 lbs. (27 kg)
- Shipping Weight: 70.0 lbs. (32 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101079059
Refrigerator Features
- Door Swing: RHD
- Reversible: Factory Reversible
- Shelf Type: Wire
- Shelf Qty: 4
- Thermostat Type: Digital
- Fan Type: Interior
- Refrigerant Type: R600a
- Refrigerant Amount: 0.99oz.
- High Side PSI: 180.0
- Low Side PSI: 80.0
- Level Legs Qty: 2
- Interior Light: Yes
- Sound Level: 2°C to 8°C
Dimensions
- Interior Height: 23.5" (60 cm)
- Interior Width: 16.25" (41 cm)
- Interior Depth: 17.0" (43 cm)
- Compressor Step Height: 6.25" (16 cm)
- Compressor Step Width: 16.25" (41 cm)
- Compressor Step Depth: 6.0" (15 cm)
Available Upgrades
Lock
- KEYPAD
- AC Keypad
Exterior
- DL2B: Factory installed NIST calibrated digital data logger (DDL)
- SCD: Self-closing door
- LHD: Left hand door swing
