MRCOOL 5 Ton 16 SEER Split System Air Conditioner Condenser - MAC16060A

Call for availability
SKU: MAC16060A
Save $244.00
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$2,356.00 Regular price$2,600.00

Description

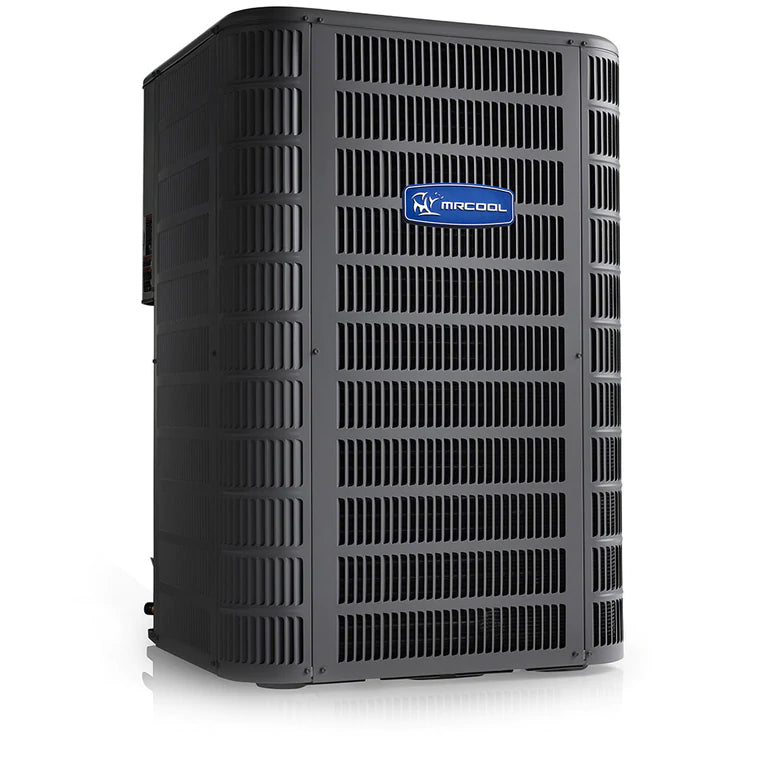

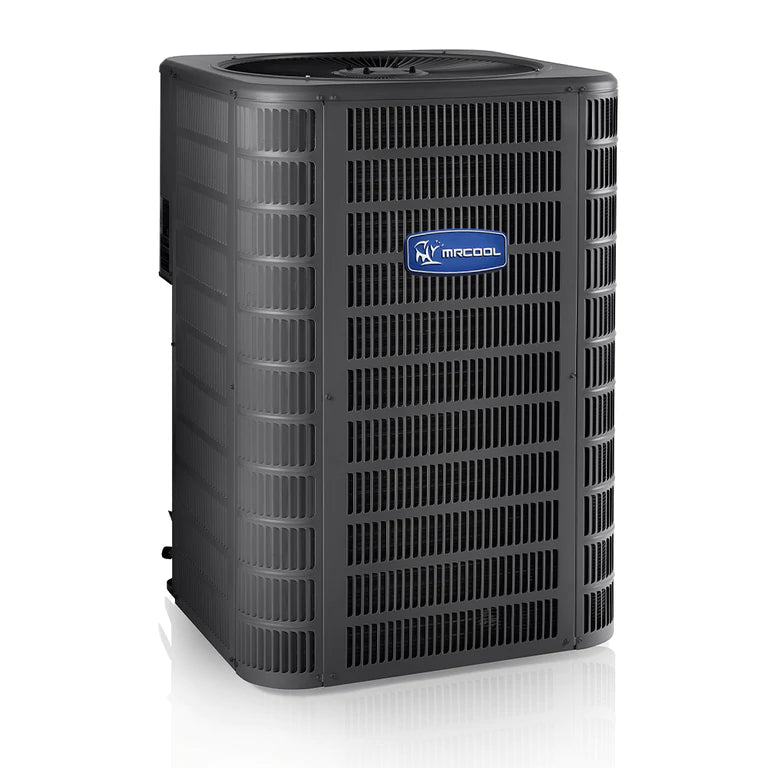

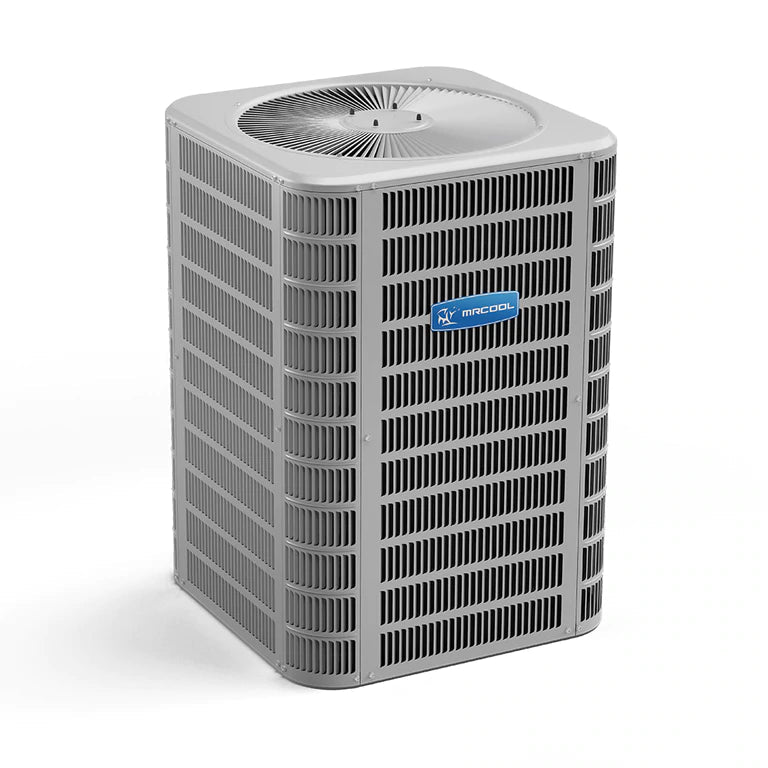

MRCOOL 5 Ton 16 SEER Split System Air Conditioner Condenser - MAC16060A

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 5 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser.

This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).

FEATURES:

  • CoolGuard total corrosion protection technology designed coil
  • Corner-mounted controls for easy service
  • Full metal louvered construction to protect the coil/ hail protection
  • Factory installed high pressure switch
  • Thread-on pressure switches for simple, quick replacement
  • 10 year limited warranty on compressor
  • Charged for 15 feet of line set
  • Fan orifice for smoother airflow and sound level reduction
  • Lanced fins for maximum heat transfer
  • Every coil factory tested for leak proof construction
  • All units ETL and ETLC approved and AHRI Certified
  • Internally protected against high temperature motor overload conditions

SPECIFICATIONS & DIMENSIONS:

Product Dimensions 32.25"W x 43"D x 32.25"H
Product Weight 226 lbs
Unit Type Split System AC Condensers
SEER up to 16
Max SEER 16
EER 11.7
CFM 1780-1800
Tonnage 5
Cooling Capacity 57000-58000
Voltage Requires a minimum of 208V-230V/60HZ/ 50A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60
Stage Single
Max Fuse Breaker 50 A
Min Circuit Ampacity 29.6
Color Gray
Rated Load 22.2
Max Coverage Area 2500
Refrigerant Type R-410A
Refrigerant Volume 192
Decibel Rating 80
Min Ambient Cool (-20F)
Line Set Length 15ft, 25ft, 35ft, 50ft
Max Line Set Length 50ft
Line Set Fitting Type Sweat
Liquid Line Size 3/8 in
Suction Line Size 7/8 ** Ada
Compressor Motor Type Scroll
Condenser Fan Motor Type Direct Drive
Condenser Fan Motor HP 1/3
Condenser Fan Motor RPM 825
Metering Device TXV
Auxiliary Heater Yes
Auxiliary Heater Sizes 7.5kw, 10kw, 15kw, 20kw
Certifications ETL
AHRI
Warranty 10 year registered parts warranty
