MRCOOL DIY 4th Generation Mini Split 24K BTU 2 Zone Ductless Air Conditioner with Heat Pump and 50 Ft Install Kit - DIYM227HPW02C22

Introducing the 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser (DIY-MULTI3-27HP230) which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MRCOOL air handlers, it can produce a highly effective 22 SEER efficiency rating. The MRCOOL 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL DIY system. When paired with a MRCOOL Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 500 sq ft.

Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuum required. The MRCOOL DIY Quick Connect Line Set is intended for use with the MRCOOL DIY Single or Multi-Zone Units.

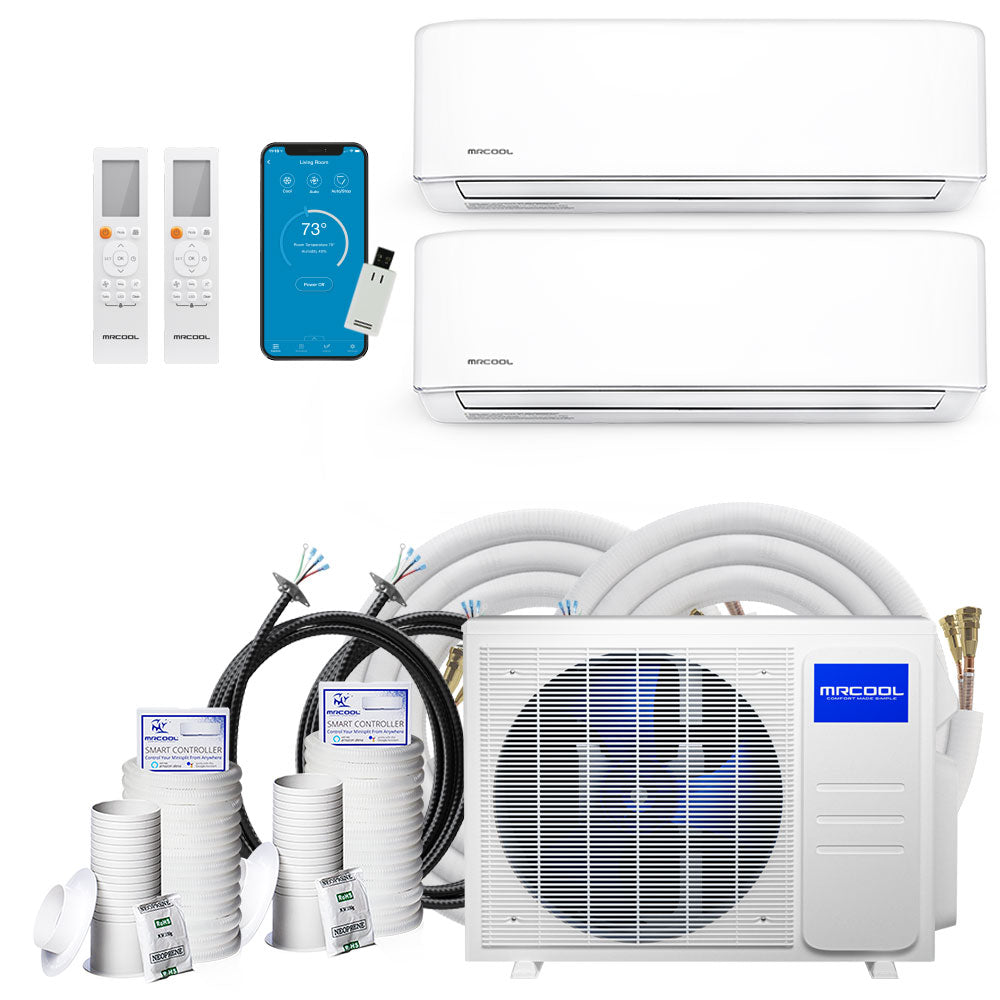

PACKAGE INCLUDES:

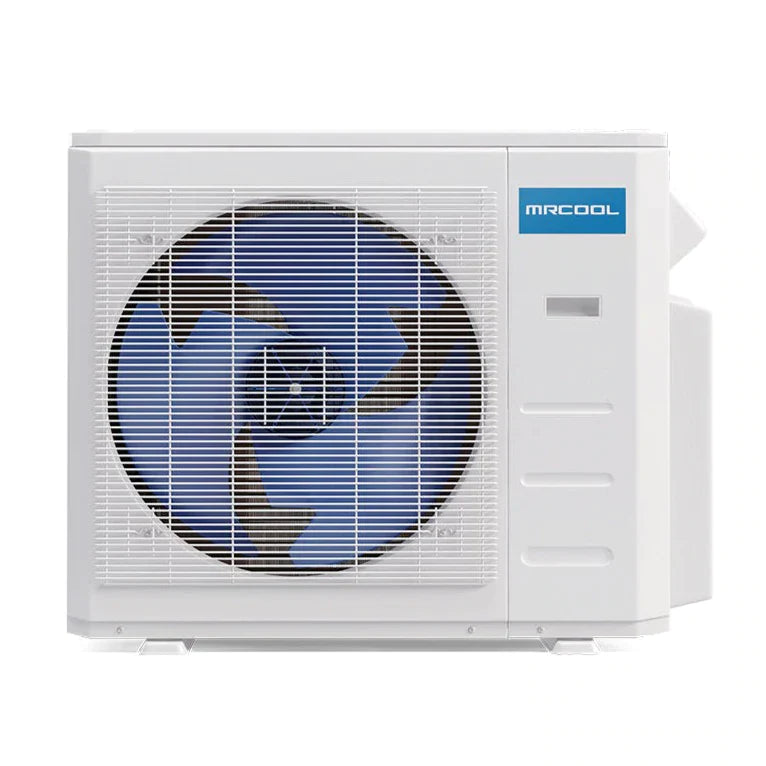

FEATURES CONDENSER DIY-MULTI3-27HP230C

  • Up to 22 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

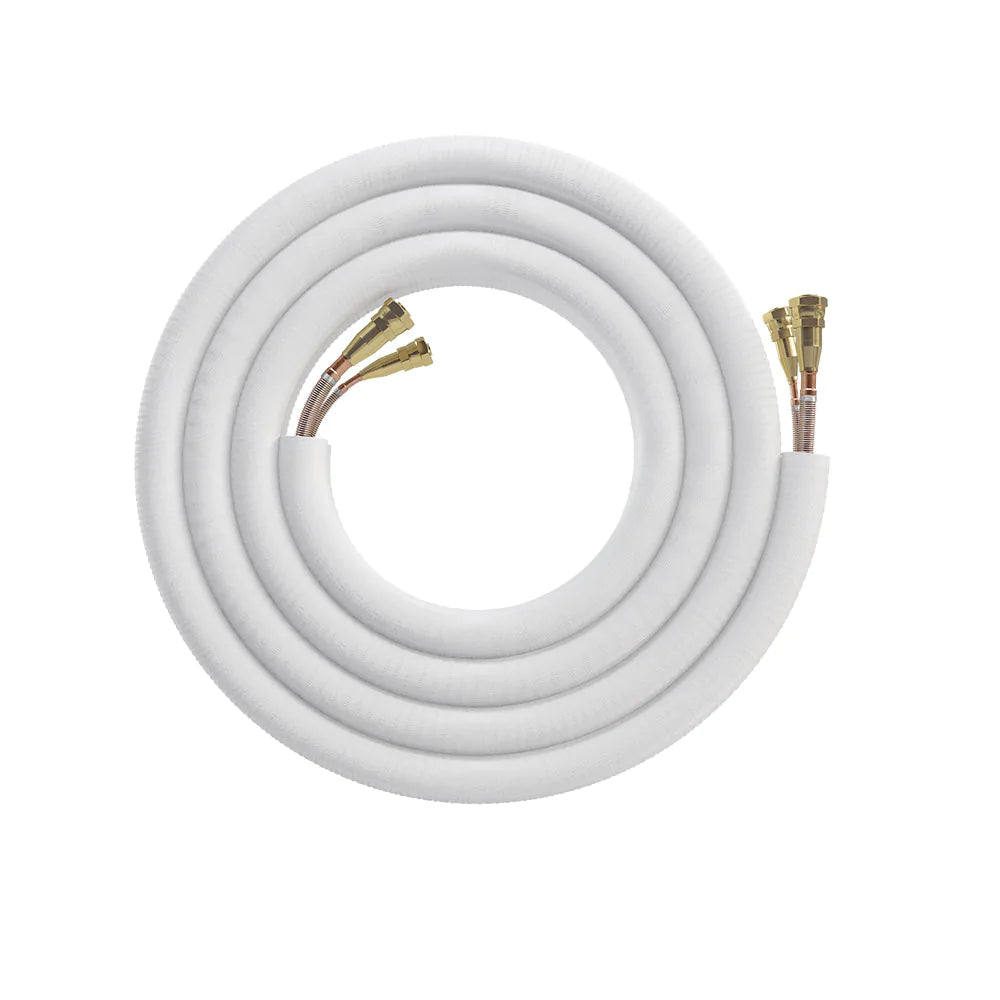

FEATURES LINE SET DIY50-1412C (x2)

  • Kink Resistant
  • Simple to Use Screw-on Quick Connect Valves
  • Leak Proof
  • No Vacuum Needed

SPECIFICATIONS CONDENSER DIY-MULTI3-27HP230C

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 139.99 lbs
SEER 22
EER 12
HSPF hspf4/hspf5 : 10.3/8.2
CFM 2129.41
Cooling Capacity 27,000 BTU
Heating Capacity 27,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 40 A
Min Circuit Ampacity 26 A
Color White
Zone Capacity Up to 3
Refrigerant Type R-410A
Refrigerant Volume 91.71 oz
Decibel Rating 61 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 147.64ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in
Compressor Motor Type Twin - Rotary
Condenser Fan Motor RPM 1050/900/850
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor



SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25 (x2)

Product Dimensions 31.57"W x 7.44"D x 11.69"H
Product Weight 23.81 lbs
Cooling Capacity 12000 BTU
Heating Capacity 12000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15 A
Min Circuit Ampacity 3 A
Mount Type Wall
Color White
Max Coverage Area Up to 500 sqft
Refrigerant Type R-410A
Inverter Yes
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1050/850/650
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI



SPECIFICATIONS LINE SET DIY50-1412C (x2)

  • Length (Feet): 50'
  • Application: Cooling
  • Liquid Line: 1/4"
  • Suction Line: 1/2"
