Description
MRCOOL DIY 4th Generation Mini Split 27K BTU 2 Zone Ductless Air Conditioner with Heat Pump and 35 Ft Install Kit - DIYM227HPW01C13
The 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MRCOOL air handlers, it can produce a highly effective 22 SEER efficiency rating. MRCOOL DIY system, the MRCOOL DIY 9K AND 18K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 and 750 sq. ft.
Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuum required. The MRCOOL DIY Quick Connect Line Set is intended for use with the MRCOOL DIY Single or Multi-Zone Units.
PACKAGE INCLUDES:
- MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series - DIY-MULTI3-27HP230C
- MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler 230 Volt with 25ft DIYPro Cable and Enhanced WiFi - DIY-09-HP-WMAH-230C25
- MRCOOL E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler - DIY-18-HP-WMAH-230C25
- DIY 4th Generation 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY35-1412C (x2)
FEATURES CONDENSER DIY-MULTI3-27HP230C
- Up to 22 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
- This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system
FEATURES LINE SET DIY35-1412C (x2)
- Kink Resistant
- Simple to Use Screw-on Quick Connect Valves
- Leak Proof
- No Vacuum Needed

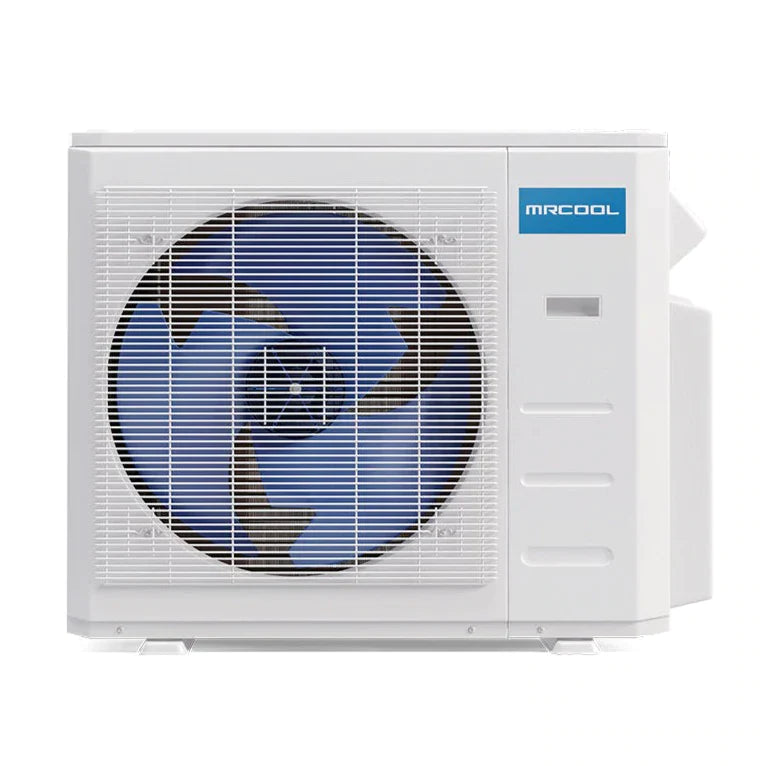

SPECIFICATIONS CONDENSER DIY-MULTI3-27HP230C
Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
Product Weight | 139.99 lbs |
SEER | 22 |
EER | 12 |
HSPF | hspf4/hspf5 : 10.3/8.2 |
CFM | 2129.41 |
Cooling Capacity | 27,000 BTU |
Heating Capacity | 27,000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker | 40 A |
Min Circuit Ampacity | 26 A |
Color | White |
Zone Capacity | Up to 3 |
Refrigerant Type | R-410A |
Refrigerant Volume | 91.71 oz |
Decibel Rating | 61 dBA |
Inverter | Yes |
Min Ambient Cool | 5F ~ 122F |
Min Ambient Heat | -13F ~ 75.2F |
Max Lineset Length | 147.64ft TOTAL |
Liquid Line Size | 1/4in |
Suction Line Size | 3/8in |
Compressor Motor Type | Twin - Rotary |
Condenser Fan Motor RPM | 1050/900/850 |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Warranty | 5-year Parts/7-year Compressor |

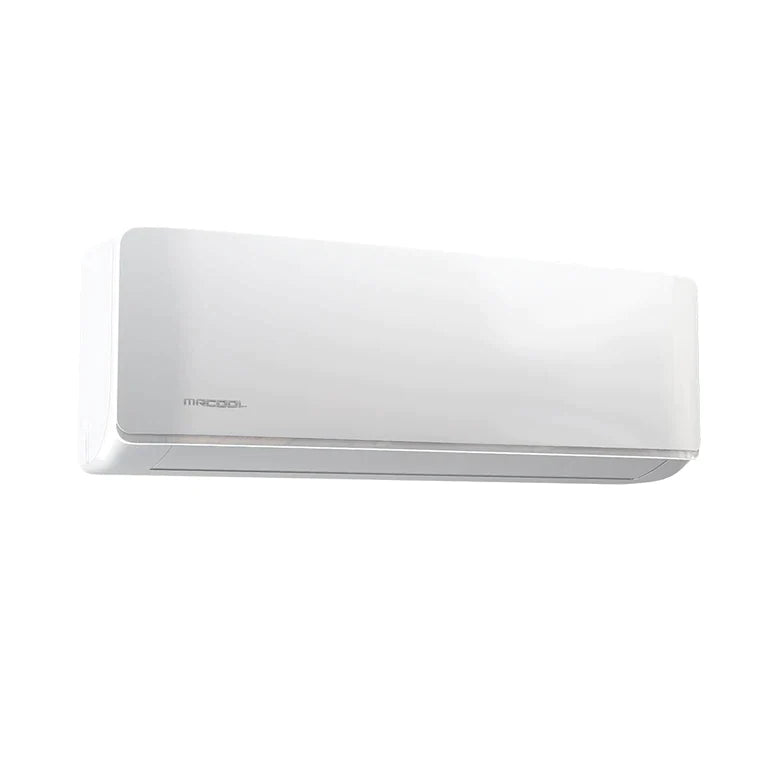

SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Product Weight | 23.81 lbs |
Cooling Capacity | 9000 BTU |
Heating Capacity | 9000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker |
15 A |
Min Circuit Ampacity | 3 A |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 375 sqft |
Refrigerant Type | R-410A |
Inverter | Yes |
Liquid Line Size | 1/4 in |
Suction Line Size | 1/2 in |
Blower Motor RPM | 1050/850/650 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor |
Restricted States | GU;PR;VI |
SPECIFICATIONS AIR HANDLER DIY-18-HP-WMAH-230C25
Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
Product Weight | 34.61 lbs |
Cooling Capacity | 18000 BTU |
Heating Capacity | 18000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 750 sqft |
Refrigerant Type | R-410A |
Decibel Rating | 44.5/37/31 |
Decibel Rating Low | 31 dBA |
Decibel Rating High | 44.5 dBA |
Inverter | Yes |
Max Lineset Length | 98.42 ft |
Liquid Line Size | 1/4 in |
Suction Line Size | 1/2 in |
Blower Motor RPM | 1120/950/700 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor |
Restricted States | GU;PR;VI |

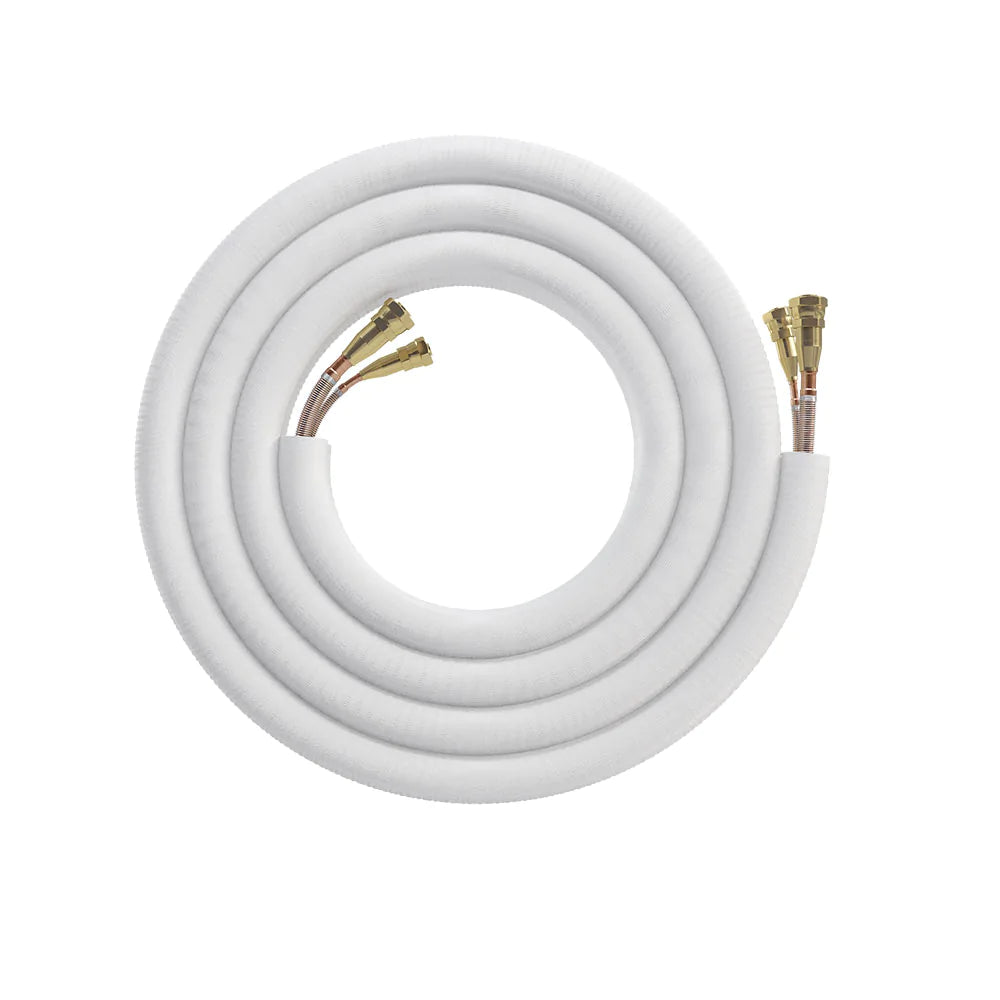

SPECIFICATIONS LINE SET DIY35-1412C (x2)
- Length (Feet): 35'
- Application: Cooling
- Liquid Line: 1/4"
- Suction Line:1/2"
PRODUCT MANUALS:
CONDENSER MANUALS
9K AIR HANDLER MANUALS
18K AIR HANDLER MANUALS
LINE SET MANUALS
