Description
MRCOOL DIY 4th Generation Mini Split 30K BTU 3 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit - DIYM327HPW01C74
Introducing the 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser (DIY-MULTI3-27HP230) which is one of the most capable heat pumps on the market. As part of a MRCOOL DIY system, the MRCOOL DIY 9K BTU Ductless Wall Mounted Air Handler (DIY-09-HP-WMAH-230C) is one of the most efficient air handlers available. The MRCOOL 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL DIY system. The patented MRCOOL DIY Quick Connect Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuum required.

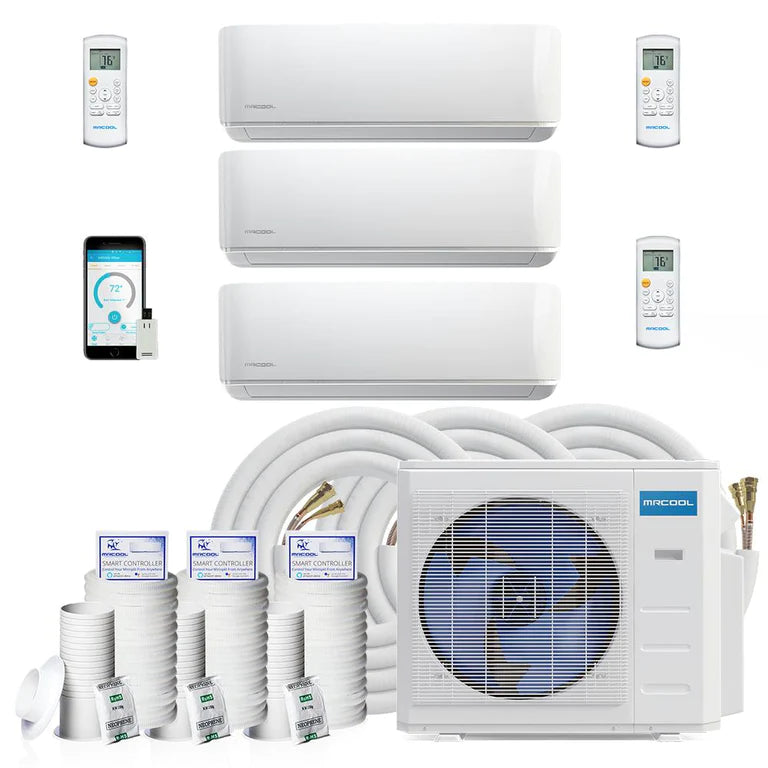

PRODUCTS INCLUDES:
MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series - DIY-MULTI3-27HP230C
MRCOOL DIY 12k BTU Ductless Mini Split Air Handler, Energy Star, 4th Gen - DIY-12-HP-WMAH-230C25
DIY 4th Generation 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY50-1412C (x3)

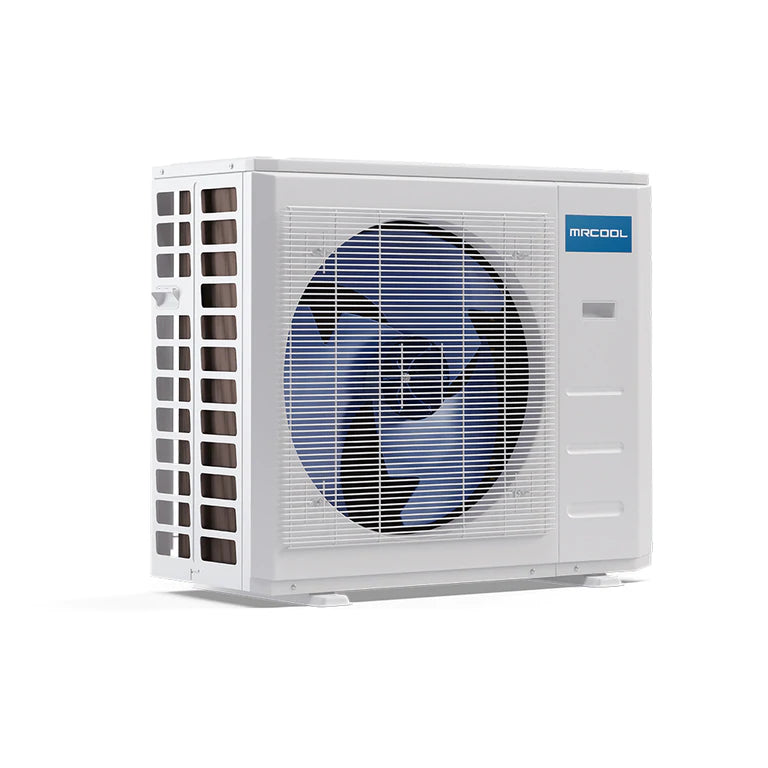

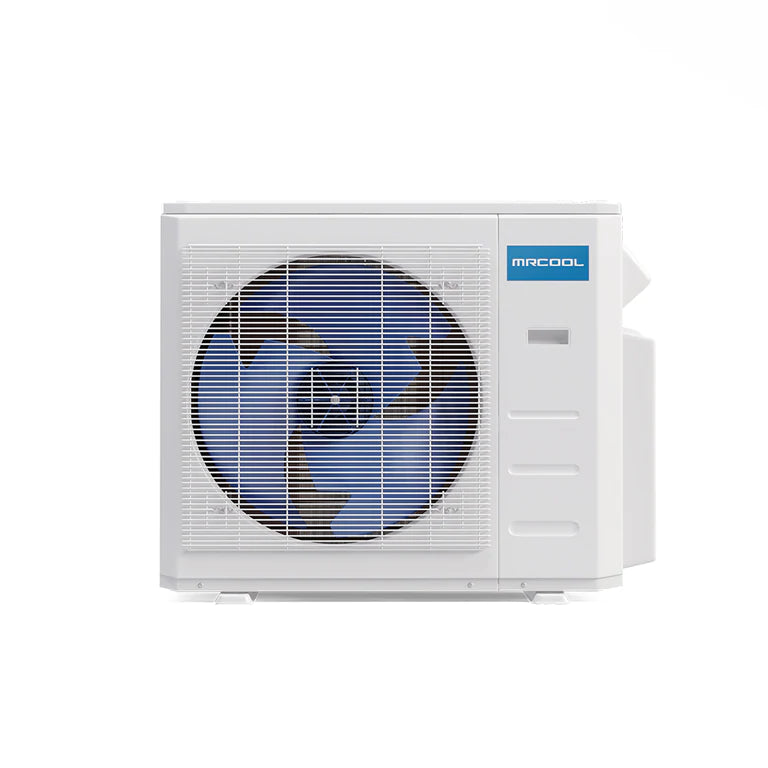

FEATURES CONDENSER DIY-MULTI3-27HP230C
- Up to 22 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

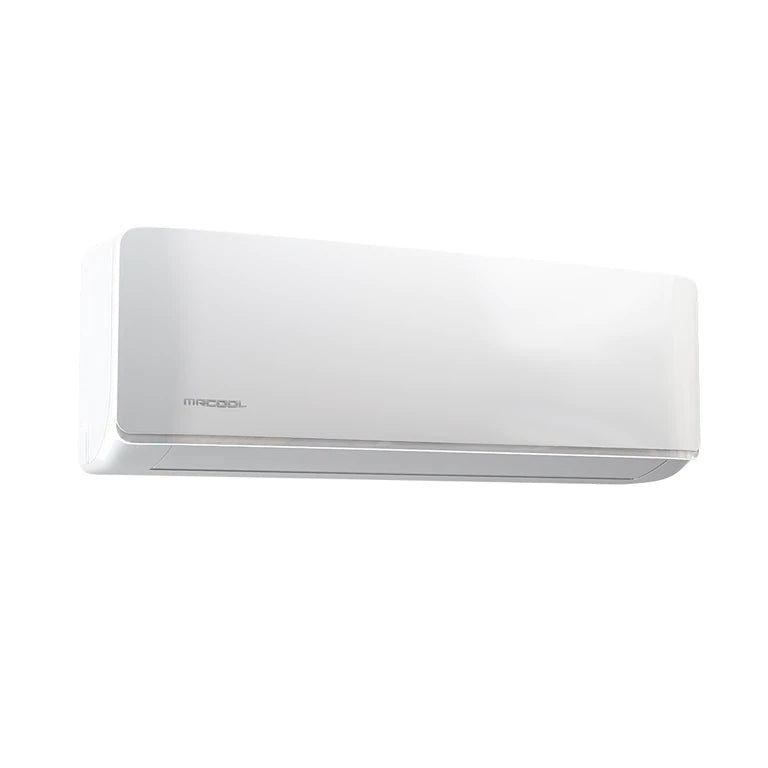

FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES AIR HANDLER DIY-12-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

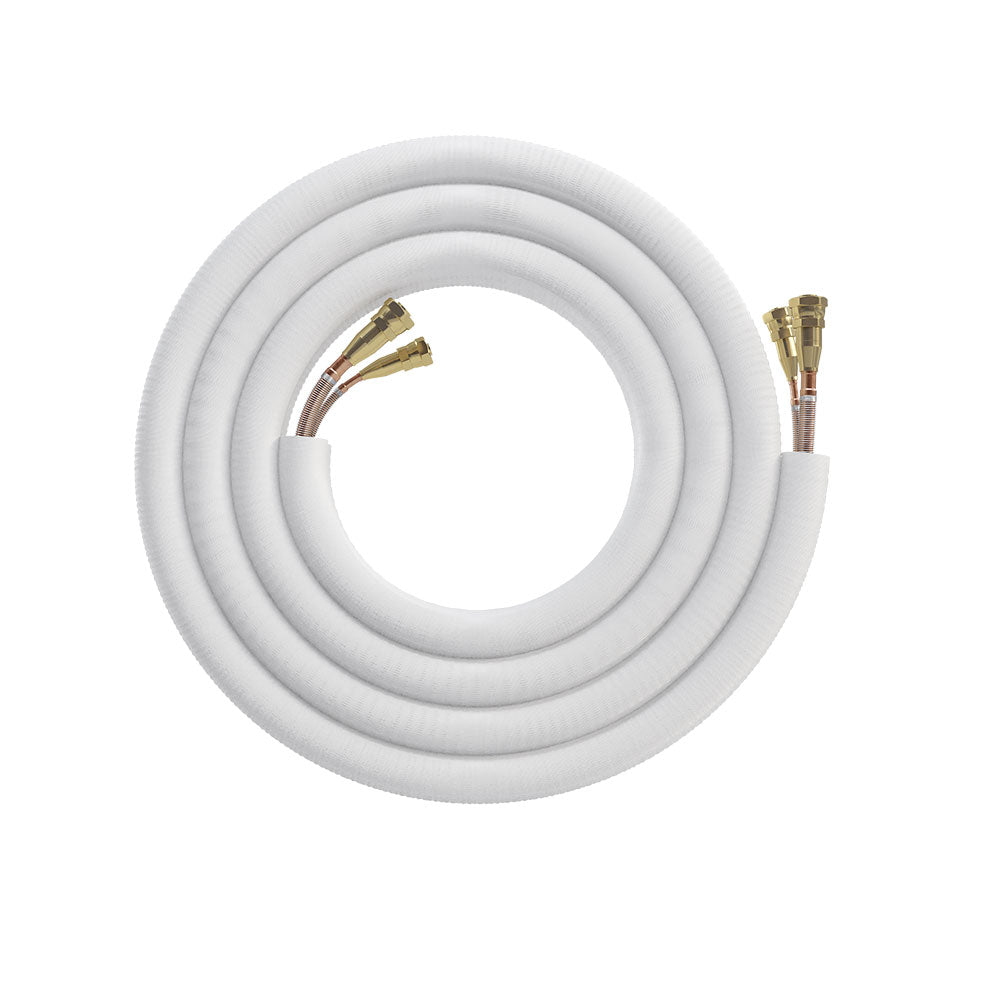

FEATURES LINESET DIY50-1412C
- Kink Resistant

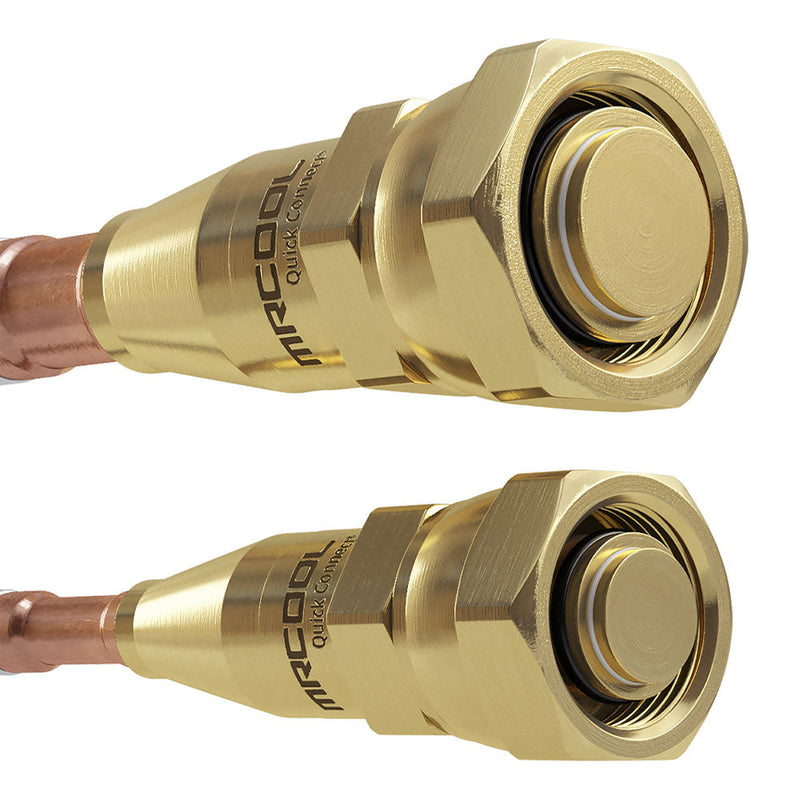

- Simple to Use Screw-on Quick Connect Valves
- Leak Proof
- No Vacuum Needed
SPECIFICATIONS CONDENSER DIY-MULTI3-27HP230C
Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
Product Weight | 139.99 lbs |
SEER | 22 |
EER | 12 |
HSPF | hspf4/hspf5 : 10.3/8.2 |
CFM | 2129.41 |
Cooling Capacity | 27,000 BTU |
Heating Capacity | 27,000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker | 40 A |
Min Circuit Ampacity | 26 A |
Color | White |
Zone Capacity | Up to 3 |
Refrigerant Type | R-410A |
Refrigerant Volume | 91.71 oz |
Decibel Rating | 61 dBA |
Inverter | Yes |
Min Ambient Cool | 5F ~ 122F |
Min Ambient Heat | -13F ~ 75.2F |
Max Lineset Length | 147.64ft TOTAL |
Liquid Line Size | 1/4in |
Suction Line Size | 3/8in |
Compressor Motor Type | Twin - Rotary |
Condenser Fan Motor RPM | 1050/900/850 |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Warranty | 5-year Parts/7-year Compressor |
SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Product Weight | 23.81 lbs |
Cooling Capacity | 9000 BTU |
Heating Capacity | 9000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker |
15 A |
Min Circuit Ampacity | 3 A |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 375 sqft |
Refrigerant Type | R-410A |
Inverter | Yes |
Liquid Line Size | 1/4 in |
Suction Line Size | 1/2 in |
Blower Motor RPM | 1050/850/650 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor |
Restricted States | GU;PR;VI |
SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Product Weight | 23.81 lbs |
Cooling Capacity | 12000 BTU |
Heating Capacity | 12000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker |
15 A |
Min Circuit Ampacity | 3 A |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 500 sqft |
Refrigerant Type | R-410A |
Inverter | Yes |
Liquid Line Size | 1/4 in |
Suction Line Size | 1/2 in |
Blower Motor RPM | 1050/850/650 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor |
Restricted States | GU;PR;VI |
SPECIFICATIONS LINESET DIY50-1412C
- Length (Feet): 50'
- Application: Cooling
- Liquid Line: 1/4"
- Suction Line: 1/2"
