Description
MRCOOL DIY 4th Generation Mini Split 36K BTU 2 Zone Ductless Air Conditioner With Heat Pump and 35 Ft Install Kit - DIYM236HPW02C16
This Package Includes 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations. This condenser has the ability to support up to 4 zones. The MRCOOL 4th Generation DIY 12K and 24k BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL DIY system. When paired with a MRCOOL Condenser. This air handler has the ability to reach a 20.5 and 22 SEER efficiency rating. The MRCOOL DIY Quick Connect Line Set is intended for use with the MRCOOL DIY Single or Multi-Zone Units.

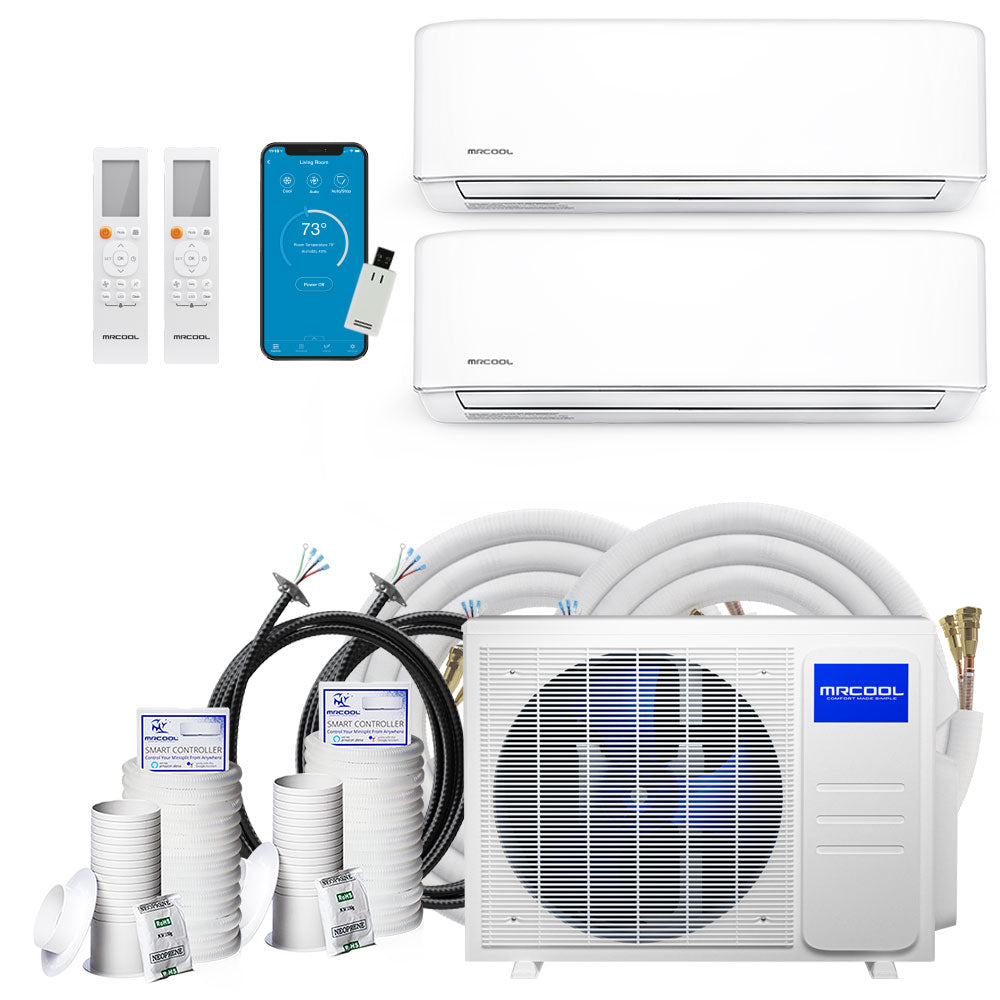

PACKAGE INCLUDES:

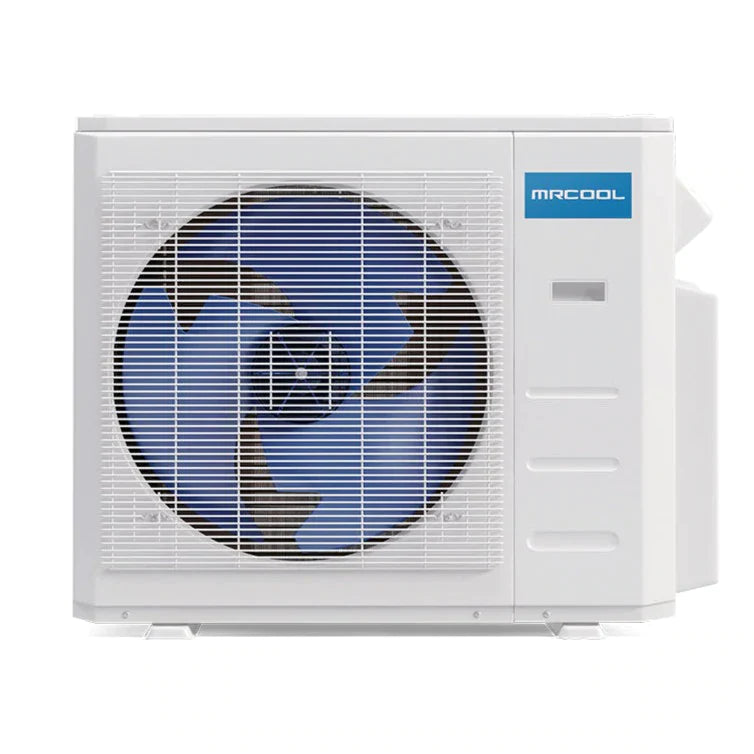

- MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series - DIY-MULTI4-36HP230C

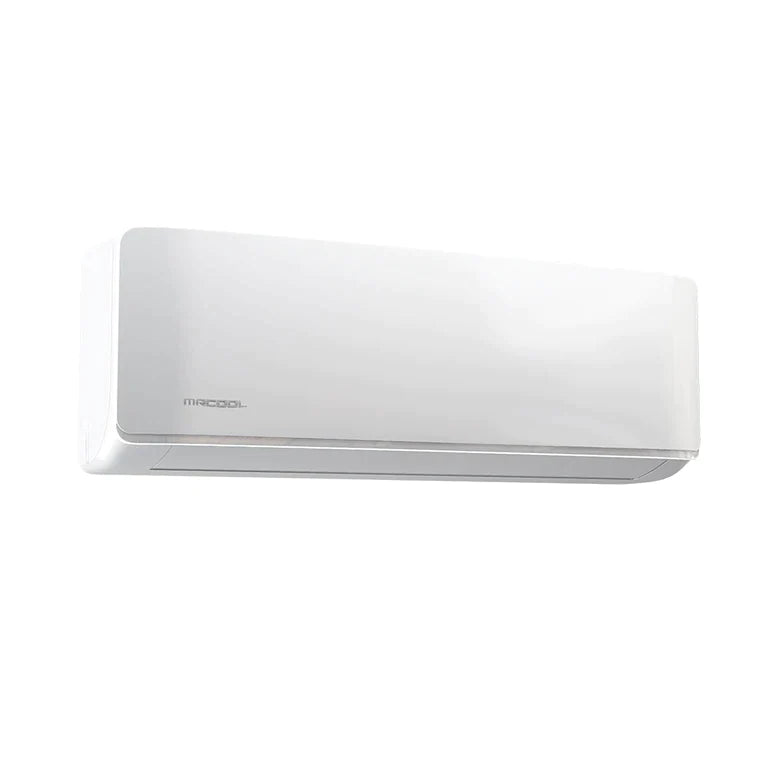

- MRCOOL DIY 12k BTU Ductless Mini Split Air Handler, Energy Star, 4th Gen - DIY-12-HP-WMAH-230C25
- MRCOOL E Star DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler - DIY-24-HP-WMAH-230C25

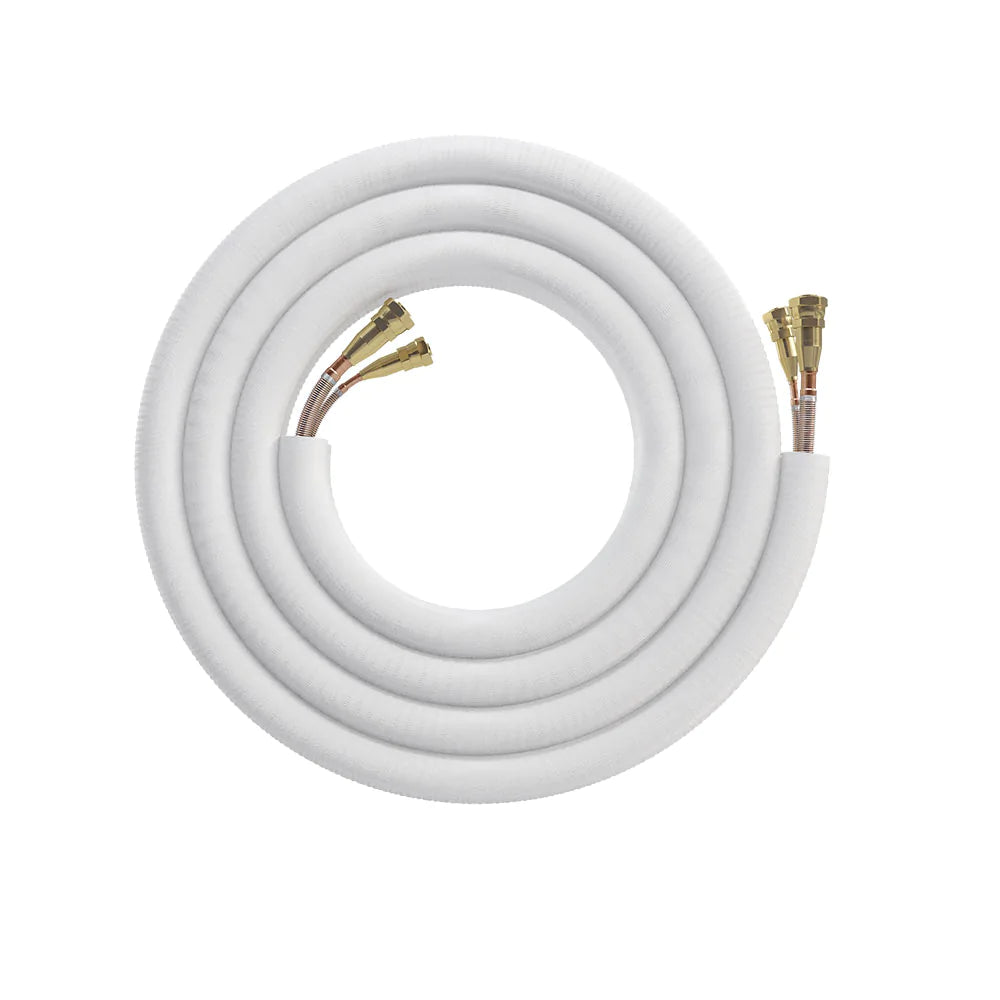

- DIY 4th Generation 35ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor - DIY35-3858C
- DIY 4th Generation 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY35-1412C
FEATURES CONDENSER DIY-MULTI4-36HP230C
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
FEATURES AIR HANDLER DIY-12-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES AIR HANDLER DIY-24-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES LINESET DIY35-3858C
- Kink Resistant
- Simple to Use Screw-on Quick Connect Valves
- Leak Proof
- No Vacuum Needed
FEATURES LINESET DIY35-1412C
- Kink Resistant
- Simple to Use Screw-on Quick Connect Valves
- Leak Proof
- No Vacuum Needed
SPECIFICATIONS CONDENSER DIY-MULTI4-36HP230C
Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
Product Weight | 170.42 lbs |
SEER | 21.5 |
EER | 10.5 |
HSPF | hspf4/hspf5 : 11/8.5 |
CFM | 2147.06 |
Cooling Capacity | 36000 BTU |
Heating Capacity | 36000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker |
45 A |
Min Circuit Ampacity | 27 A |
Color | White |
Zone Capacity | Up to 4 |
Refrigerant Type | R-410A |
Refrigerant Volume | 134.04 oz |
Decibel Rating | 65 dBA |
Inverter | Yes |
Min Ambient Cool | 5F ~ 122F |
Min Ambient Heat | -13F ~ 75.2F |
Max Lineset Length | 196.85 ft TOTAL |
Liquid Line Size | 1/4in |
Suction Line Size | 3/8in+1/2in |
Compressor Motor Type | Rotary |
Condenser Fan Motor RPM | 1000/900/750 |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Warranty | 5-year Parts/7-year Compressor Registered Warranty - Limited Lifetime Warranty |
SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Product Weight | 23.81 lbs |
Cooling Capacity | 12000 BTU |
Heating Capacity | 12000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Max Fuse Breaker |
15 A |
Min Circuit Ampacity | 3 A |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 500 sqft |
Refrigerant Type | R-410A |
Inverter | Yes |
Liquid Line Size | 1/4 in |
Suction Line Size | 1/2 in |
Blower Motor RPM | 1050/850/650 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor |
Restricted States | GU;PR;VI |
SPECIFICATIONS AIR HANDLER DIY-24-HP-WMAH-230C25
Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
Product Weight | 35.27 lbs |
Cooling Capacity | 23000 BTU |
Heating Capacity | 25000 BTU |
Voltage |
Requires a minimum of 208V-230V/60HZ/22-35A (please check your home meets this electrical requirement prior to purchase) |
Phase | 1 |
Cycle | 60 Hz |
Mount Type | Wall |
Color | White |
Max Coverage Area | Up to 1000 sqft |
Refrigerant Type | R-410A |
Decibel Rating | 48.5/43.5/33 |
Decibel Rating Low | 33 dBA |
Decibel Rating High | 48.5 dBA |
Inverter | Yes |
Max Lineset Length | 98.42 ft |
Liquid Line Size | 3/8 in |
Suction Line Size | 5/8 in |
Blower Motor RPM | 1200/1000/700 |
Modes | Fan Only Quiet Mode Auto Cool |
Wifi Compatibility | Yes |
App Compatibility | Yes |
Compatible with | IOS Android |
Includes | Remote Batteries |
Certifications | Energy Star AHRI |
Warranty | 5-year Parts/7-year Compressor Register for limited lifetime compressor warranty! |
Restricted States | GU;PR;VI |
SPECIFICATIONS LINESET DIY35-3858C
- Length (Feet): 35'
- Application: Cooling
- Liquid Line: 3/8"
- Suction Line: 5/8"
SPECIFICATIONS LINESET DIY35-1412C
- Length (Feet): 35'
- Application: Cooling
- Liquid Line: 1/4"
- Suction Line:1/2"
PRODUCT MANUALS:
CONDENSER MANUALS
12K AIR HANDLER MANUALS
24K AIR HANDLER MANUALS
LINESET MANUALS
LINESET MANUALS
