MRCOOL DIY 4th Generation Mini Split 54K BTU 3 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit - DIYM348HPW03C74

Call for availability
SKU: DIYM348HPW03C74
Save $1,980.00
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$6,525.00 Regular price$8,505.00

Description

MRCOOL DIY 4th Generation Mini Split 54K BTU 3 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit - DIYM348HPW03C74

Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL DIY 48K BTU Ductless Heat Pump Condenser (DIY-MULTI5-48HP230C) that can support up to 5 zones. The MRCOOL4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. The patented MRCOOL DIY Quick Connect Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuum required.

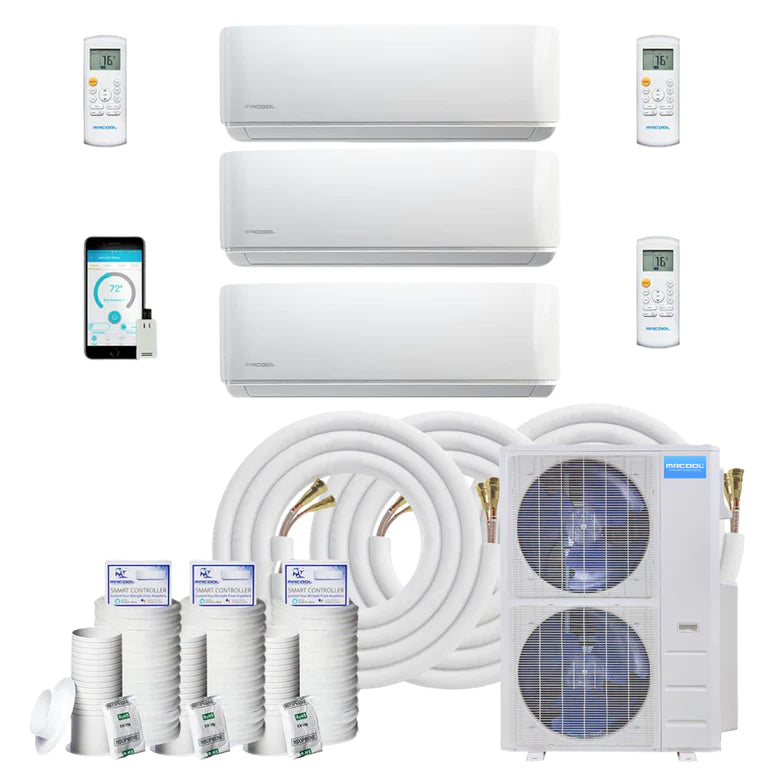

PRODUCTS INCLUDES:

MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series - DIY-MULTI5-48HP230C

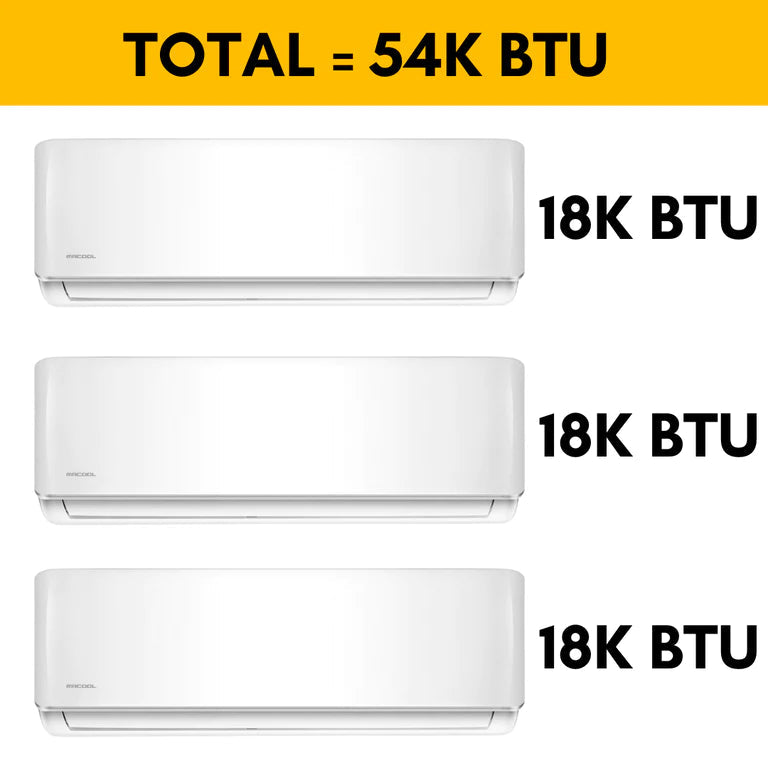

MRCOOL E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler - DIY-18-HP-WMAH-230C25 (x3)

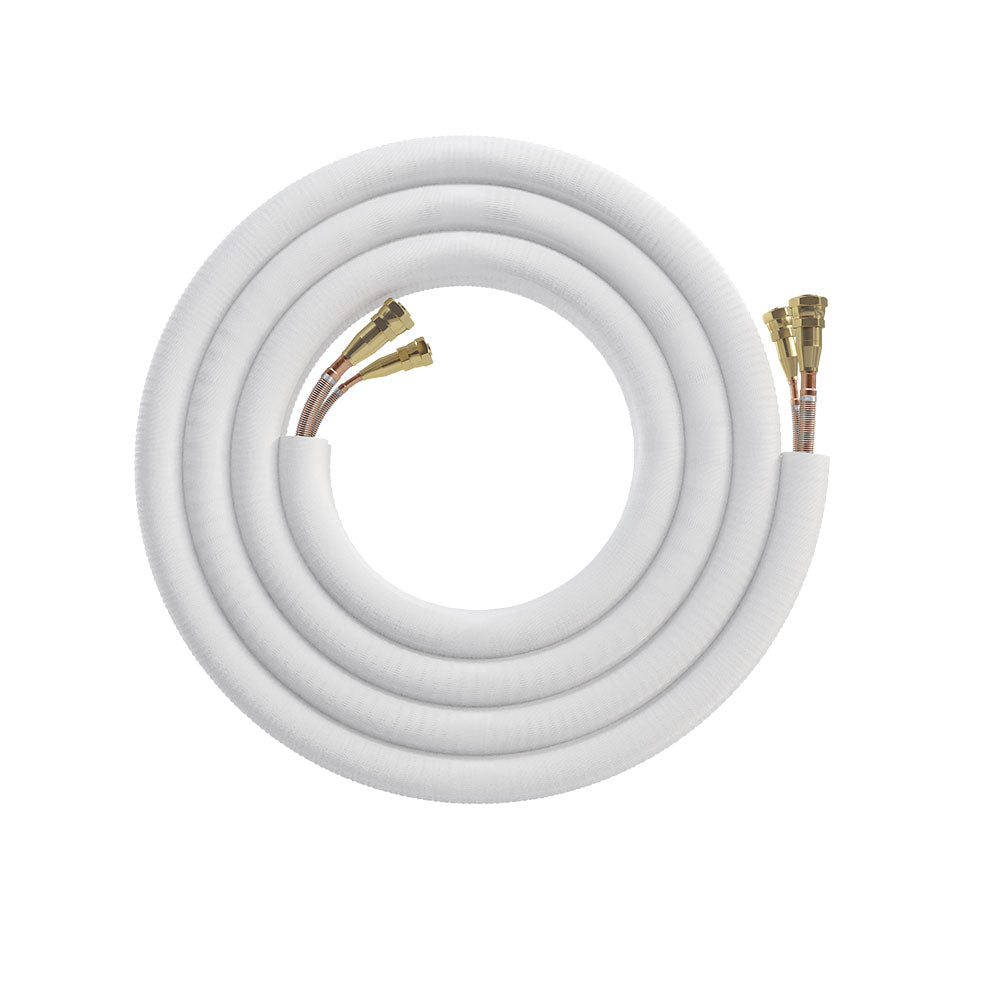

DIY 4th Generation 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY50-1412C (x3)

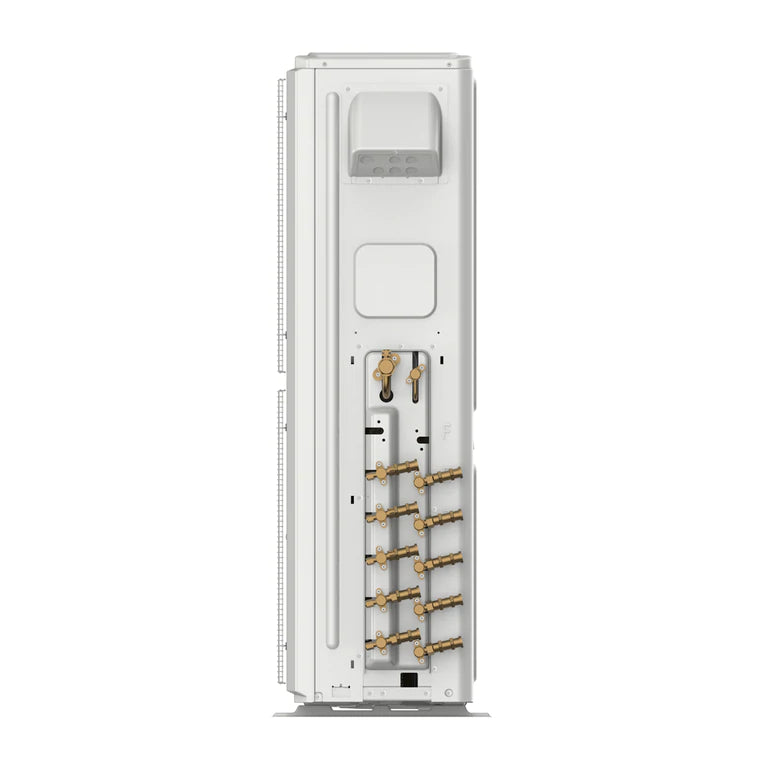

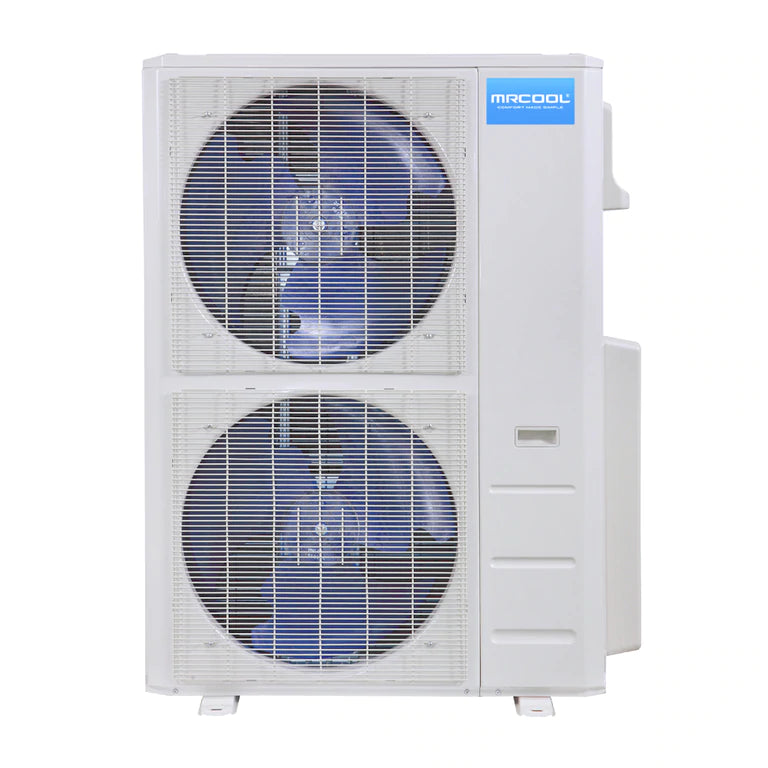

FEATURES CONDENSER DIY-MULTI5-48HP230C

  • Up to 20.5 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25

  • Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
  • This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system

FEATURES LINESET DIY50-1412C

  • Kink Resistant

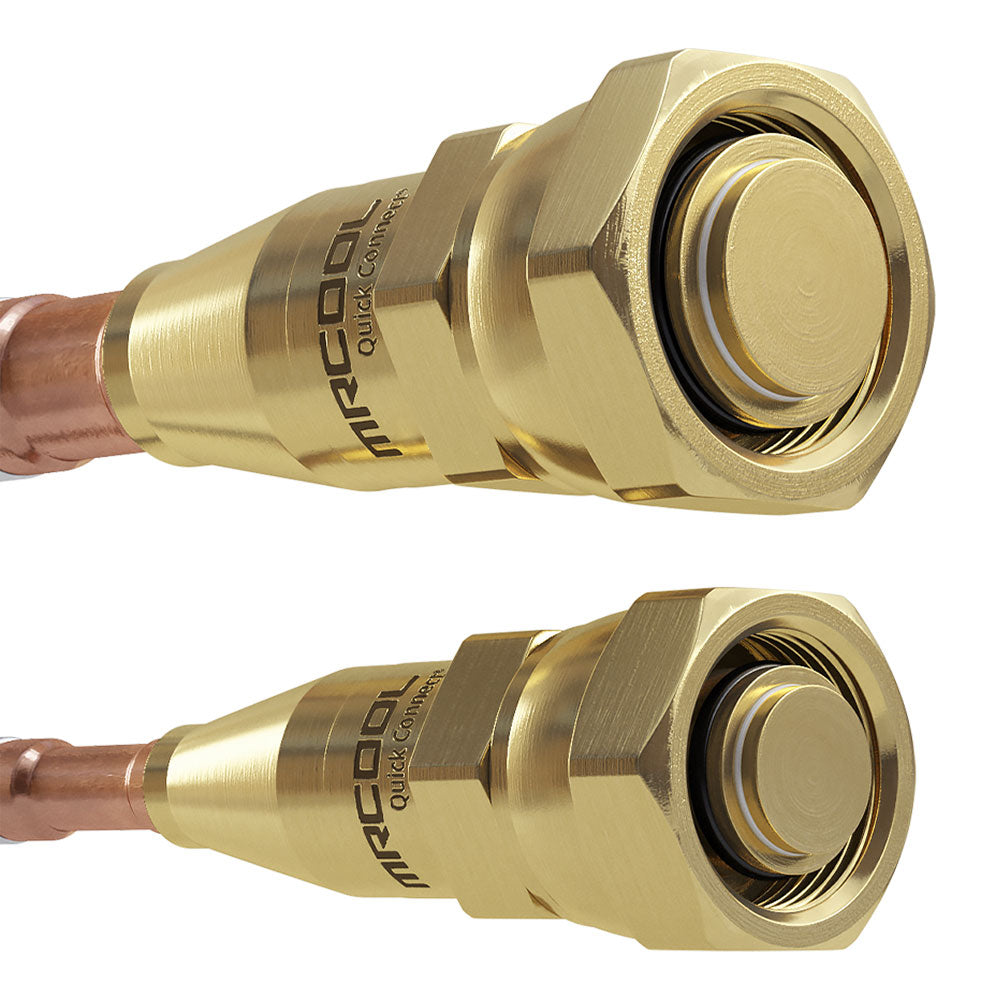

  • Simple to Use Screw-on Quick Connect Valves
  • Leak Proof
  • No Vacuum Needed

SPECIFICATIONS CONDENSER DIY-MULTI5-48HP230C

Product Dimensions 37.48"W x 16.34"D x 52.48"H
Product Weight 222.89 lbs
SEER 20.5
EER 11
HSPF hspf4/hspf5 : 11/8.5
CFM 4500
Cooling Capacity 48000 BTU
Heating Capacity 48000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 60 A
Min Circuit Ampacity 40 A
Color White
Zone Capacity Up to 5
Refrigerant Type R-410A
Refrigerant Volume 162 oz
Decibel Rating 61.5 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat 5F ~ 75.2F
Max Lineset Length 246.06 ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in +1/2in
Compressor Motor Type Rotary
Condenser Fan Motor RPM 900/850/800/750
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
Registered Warranty: Limited Lifetime Compressor


SPECIFICATIONS CONDENSER DIY-MULTI5-48HP230C

Product Dimensions 42.52"W x 8.90"D x 13.19"H
Product Weight 34.61 lbs
Cooling Capacity 18000 BTU
Heating Capacity 18000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Mount Type Wall
Color White

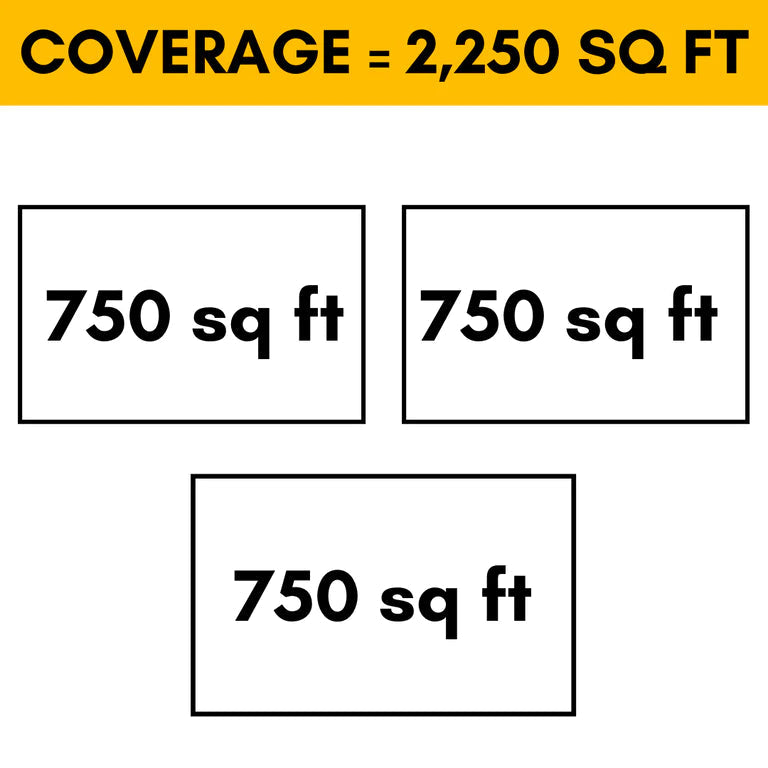

Max Coverage Area Up to 750 sqft
Refrigerant Type R-410A
Decibel Rating 44.5/37/31
Decibel Rating Low 31 dBA
Decibel Rating High 44.5 dBA
Inverter Yes
Max Lineset Length 98.42 ft
Liquid Line Size 1/4 in
Suction Line Size 1/2 in
Blower Motor RPM 1120/950/700
Modes Fan Only
Quiet Mode
Auto Cool
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Includes Remote
Batteries
Certifications Energy Star
AHRI
Warranty 5-year Parts/7-year Compressor
Restricted States GU;PR;VI

FEATURES DIY50-1412C

  • Kink Resistant
  • Simple to Use Screw-on Quick Connect Valves
  • Leak Proof
  • No Vacuum Needed
