MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series - DIY-MULTI3-27HP230C

Call for availability
SKU: DIY-MULTI3-27HP230C
Save $595.00
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$1,700.00 Regular price$2,295.00

Description

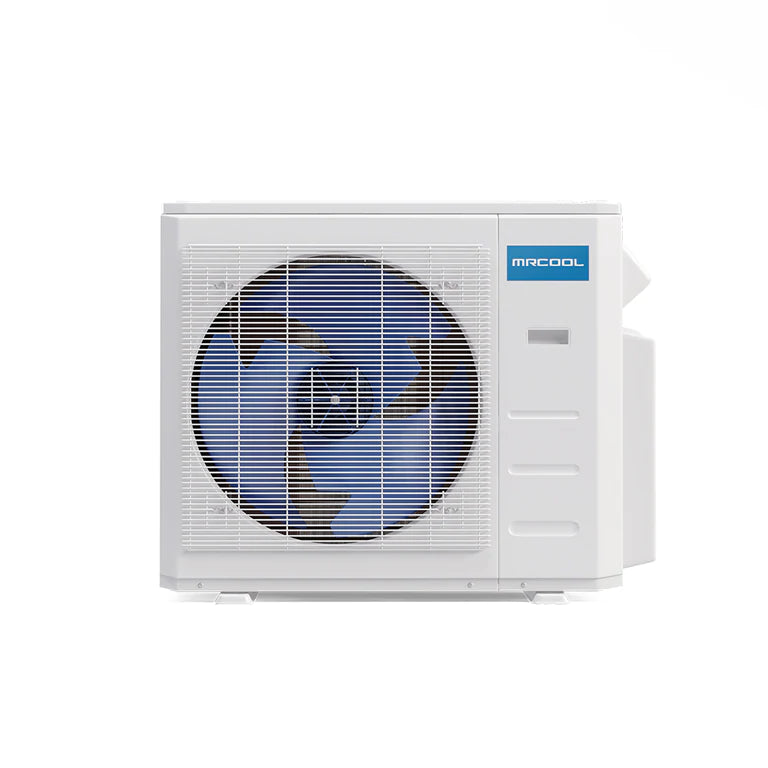

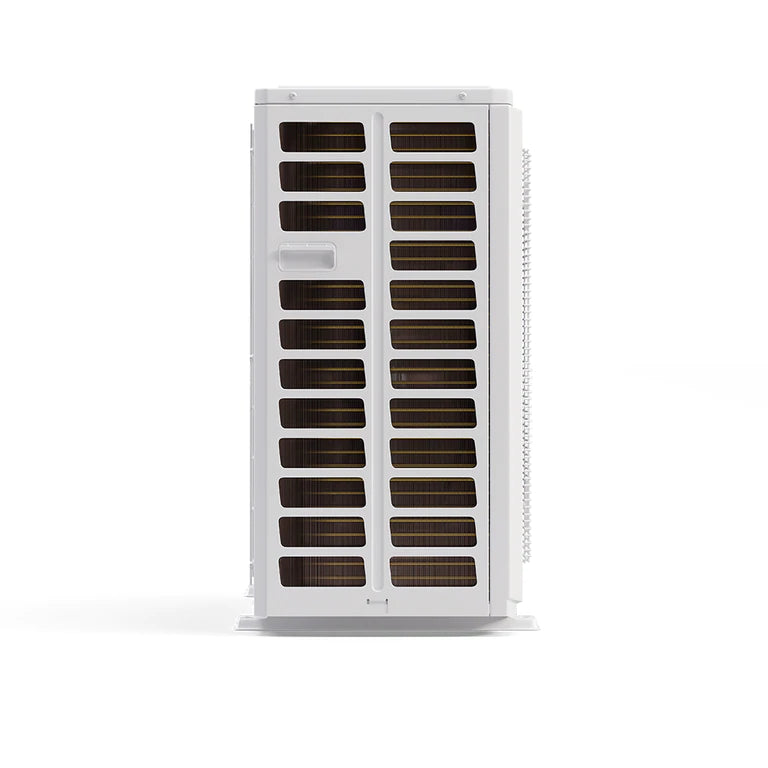

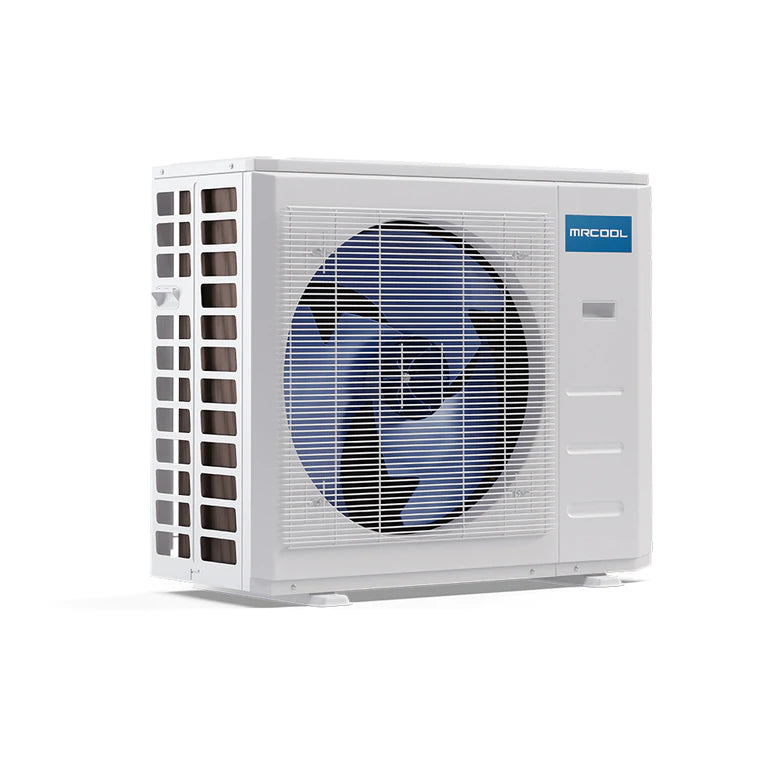

MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series - DIY-MULTI3-27HP230C

Introducing the 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser (DIY-MULTI3-27HP230) which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MRCOOL air handlers, it can produce a highly effective 22 SEER efficiency rating.

It can also provide heating performance all the way down to -13°F. With its Gold Fin condenser coating, it is sure to withstand the seasons. To drive home the quality of this condenser, MRCOOL is the only manufacturer to offer a limited lifetime compressor warranty. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project for a homeowner.

When used with MRCOOL's patented Pre-Charged Quick Connect Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming.

Allow the capability, performance, and simplicity of a DIY installation of the 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser to be your only choice for your home’s heating and cooling.

FEATURES:

  • Up to 22 SEER
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

SPECIFICATIONS & DIMENSIONS:

Product Dimensions 37.24"W x 16.14"D x 31.89"H
Product Weight 139.99 lbs
SEER 22
EER 12
HSPF hspf4/hspf5 : 10.3/8.2
CFM 2129.41
Cooling Capacity 27,000 BTU
Heating Capacity 27,000 BTU
Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60 Hz
Max Fuse Breaker 40 A
Min Circuit Ampacity 26 A
Color White
Zone Capacity Up to 3
Refrigerant Type R-410A
Refrigerant Volume 91.71 oz
Decibel Rating 61 dBA
Inverter Yes
Min Ambient Cool 5F ~ 122F
Min Ambient Heat -13F ~ 75.2F
Max Lineset Length 147.64ft TOTAL
Liquid Line Size 1/4in
Suction Line Size 3/8in
Compressor Motor Type Twin - Rotary
Condenser Fan Motor RPM 1050/900/850
Wifi Compatibility Yes
App Compatibility Yes
Compatible with IOS
Android
Warranty 5-year Parts/7-year Compressor
