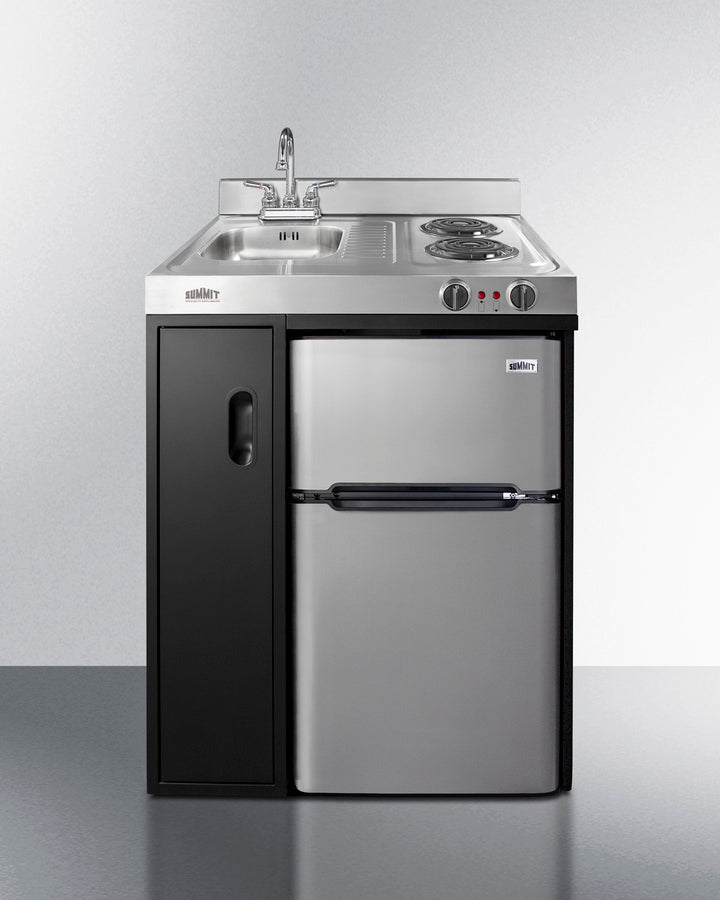

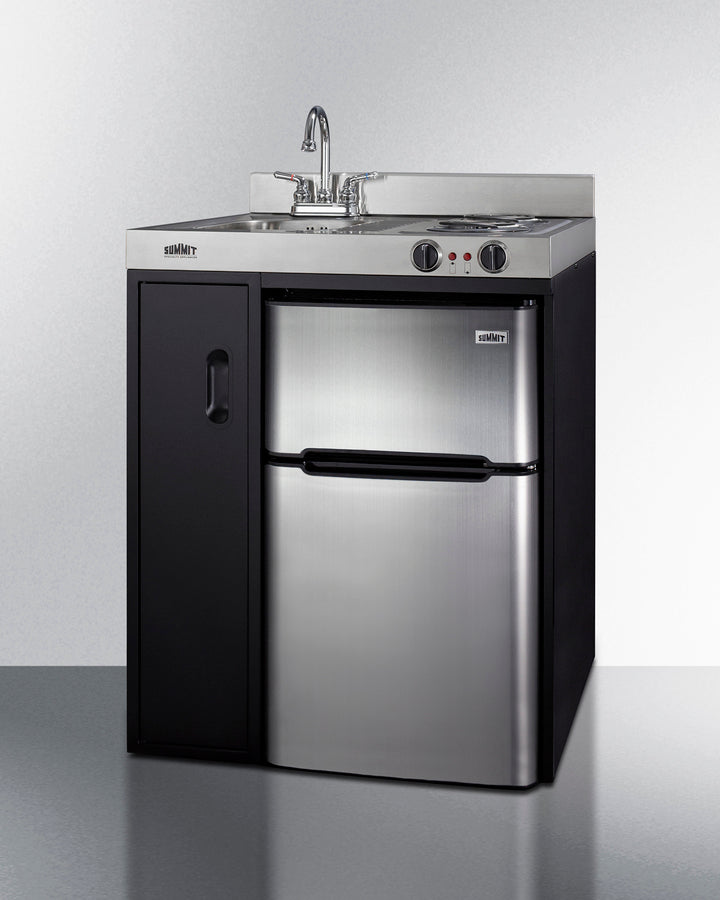

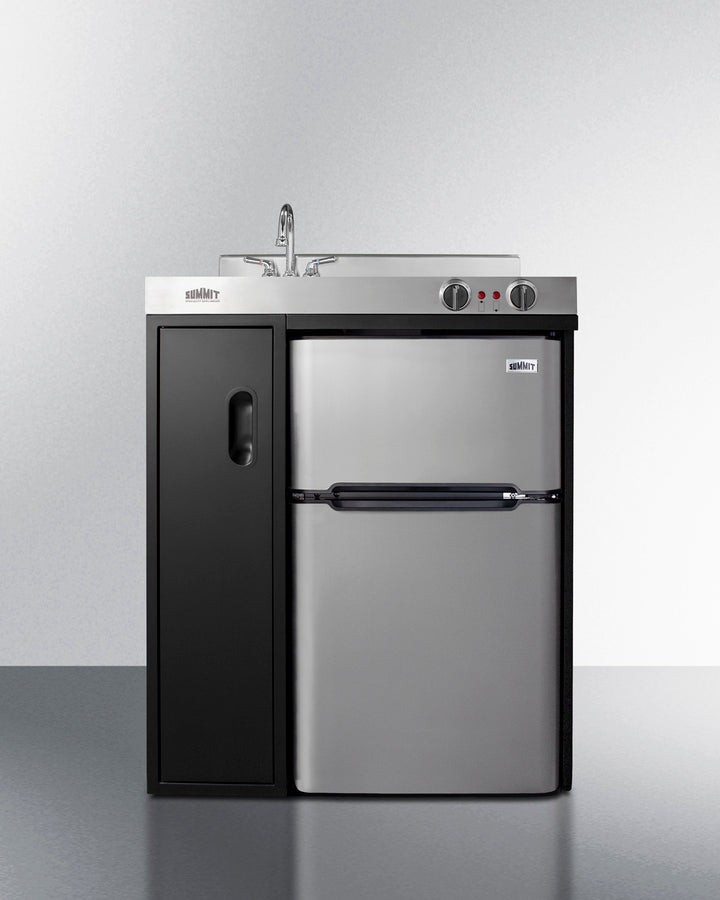

Summit 30" Wide All-In-One Kitchenette - C30ELBK
Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home food service experience, including a 2-burner coil cooktop, sink, storage cabinet, and refrigerator with a freezer compartment.
The C30ELBK is a 30" wide kitchenette with an easy-fitting 24" depth. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. It comes fully equipped with a 115V cooktop with 900W and 500W coil elements, front-located push-to-turn knobs, and a pre-installed power cord. This unit includes a compact sink with a ready-to-use faucet included. A cabinet with a removable shelf is located below the sink for dry storage.

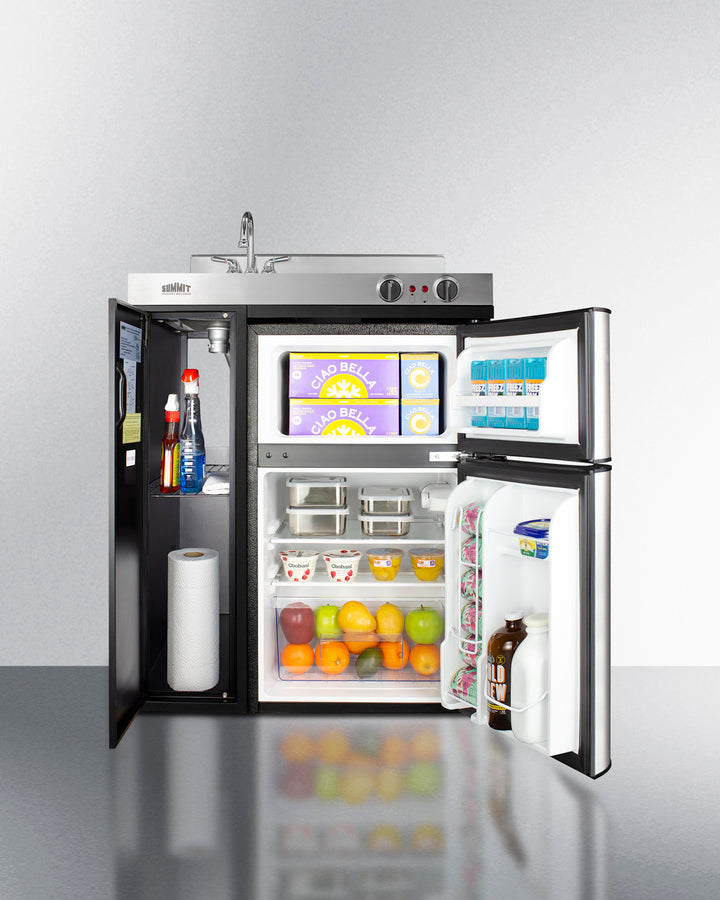

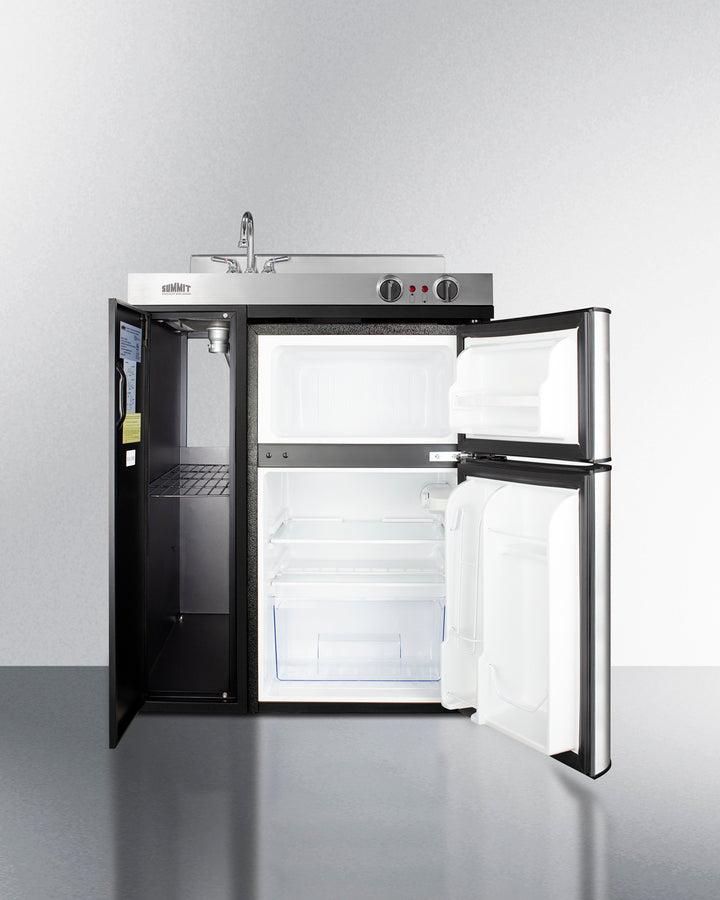

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The C30ELBK includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.
The C30ELBK is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette at one great price.
Features
- Complete one-piece kitchenette: All-in-one kitchen is built with virtually everything you need for meal preparation
- Refrigerator-freezer included: CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

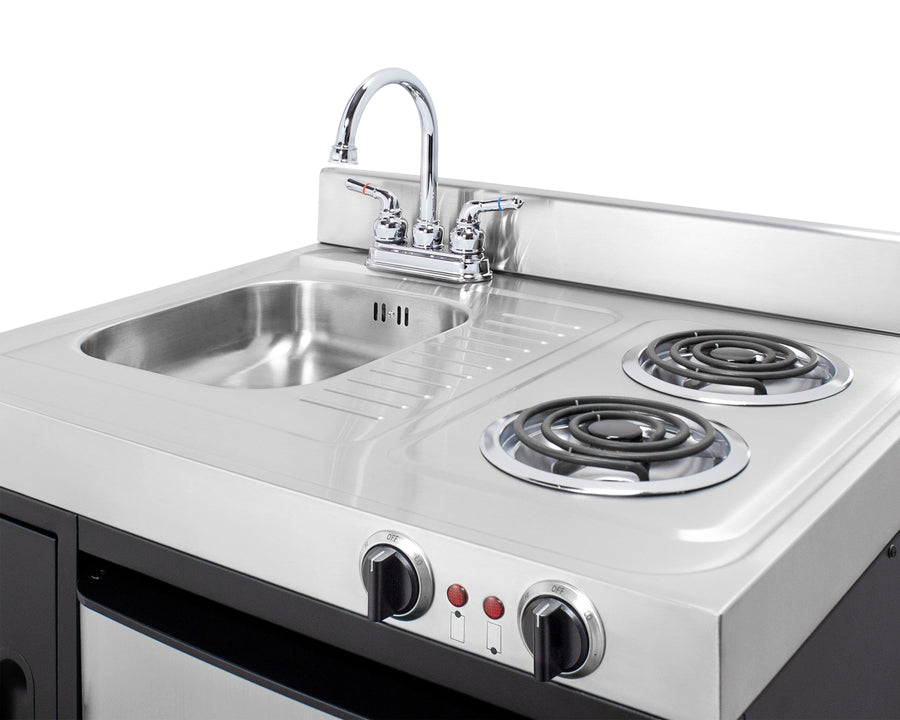

- Sink and faucet: Stainless steel sink with ready-to-use faucet included
- 2-burner cooktop: Includes two coil elements, with a rear 500W burner and front 900W burner to accommodate a range of heating options
- 115V operation with pre-installed cords: Both the cooktop (12 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup
- Push-to-turn knobs: Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents
- Indicator lights: Operating indicators light up to show which burner is in use
- Black and stainless steel exterior finish: Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors
- One piece stainless steel countertop: Easy-to-clean surface with a professional look
- Storage compartment: Convenient lower cabinet with adjustable shelf lets you store dry goods
- Ships fully assembled in one box: Kitchenette is shipped in one piece, with reinforced packaging for added protection
- Stainless steel back-guard: Includes a 4" high back-guard to complete the look and offer added protection to your walls
- Reversible doors: User-reversible door swings on the refrigerator-freezer for added flexibility

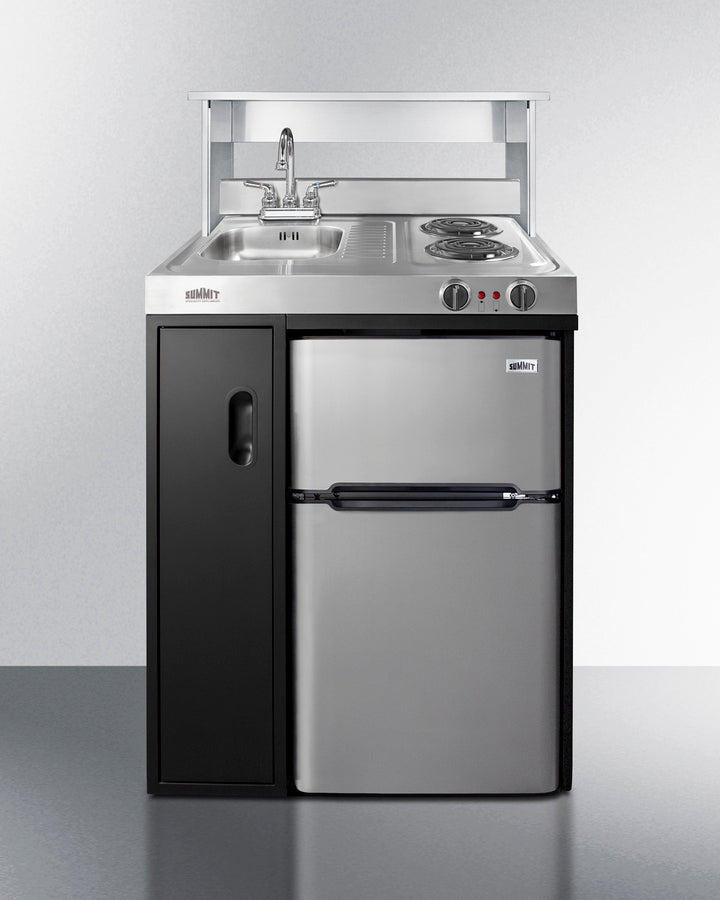

- Optional storage shelf: Add more storage convenience with the APSS30 Appliance Station, a stainless steel shelving system designed for easy installation on this unit
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications
Overview
- Height of Cabinet: 41.5" (105 cm)
- Width: 30.0" (76 cm)
- Depth: 23.63" (60 cm)
- Depth with Handle: 24.63" (63 cm)
- Depth with door at 90°: 41.88" (106 cm)
- Capacity: 3.2 cu.ft. (91 L)
- Defrost Type: Cycle
- Door: Black/SS
- Cabinet: Black
- US Electrical Safety: ETL
- Canadian Electrical Safety: ETL-C
- Amps: 13.1
- Voltage/Frequency: 115 V AC/60 Hz
- Weight: 108.0 lbs. (49 kg)
- Shipping Weight: 113.0 lbs. (51 kg)
- Parts & Labor Warranty: 1 Year
- Compressor Warranty: 5 Years
- UPC: 761101073194
Kitchenette
- Refrigerator Included: CP34BSS
- Refrigerator Door Swing: RHD
- Reversible: Yes
- Adjustable Shelves: Yes
- Shelf Type: Glass
- Shelf Qty: 2
- Crisper Qty: 1
- Crisper Finish: Transparent
- Crisper Cover: Glass
- Full Door Shelves: 2
- Can Storage: Yes
- Thermostat Type: Dial
- Interior Light: Yes
- Refrigerant Type: R600a
- Refrigerant Amount: 1.16 oz.
- High Side PSI: 250.0
- Low Side PSI: 88.0
- Cooking Type: Coil Cooktop
- Number of Burners: 2
- Cooktop Controls: Dial
- Interior Height 1: 18.5" (47 cm)
- Interior Width 1: 15.75" (40 cm)
- Interior Depth 1: 15.0" (38 cm)
- Interior Height 2: 7.5" (19 cm)
- Interior Width 2: 14.0" (36 cm)
- Interior Depth 2: 14.0" (36 cm)
Manufacturer Resources
- Brochure w/ Drawings
- Technical Drawing (.dwg)
- Use and Care
- Use and Care (Refrigerator)
- Energy Guides
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
