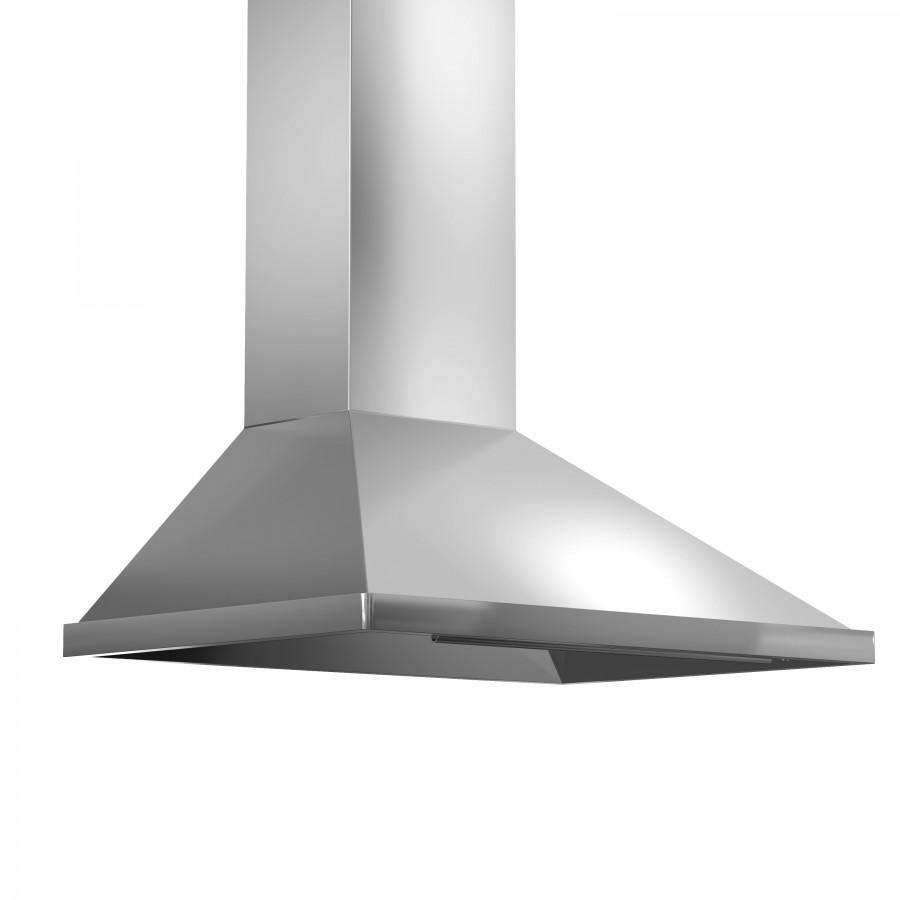

ZLINE 36-Inch Remote Single Blower Wall Range Hood (696-RS-36-400)

In Stock-Ready to Ship!
SKU: 696-RS-36-400
Save $1,111.00
filler
Build Your Own Package
Contractors & Builders: Contact us for special pricing & volume discounts
FREE SHIPPING
No sales tax (except NY)

Price:
Sale price$848.95 Regular price$1,959.95

Description

ZLINE 36 in. 400 CFM Remote Blower Wall Mount Range Hood in Stainless Steel (696-RS-36-400) meets make-up air requirements, while maintaining a powerful yet quiet high-performance motor and modern design. This hood's high-performance 4-speed motor will provide all the power you need to quietly and efficiently ventilate your kitchen while cooking.

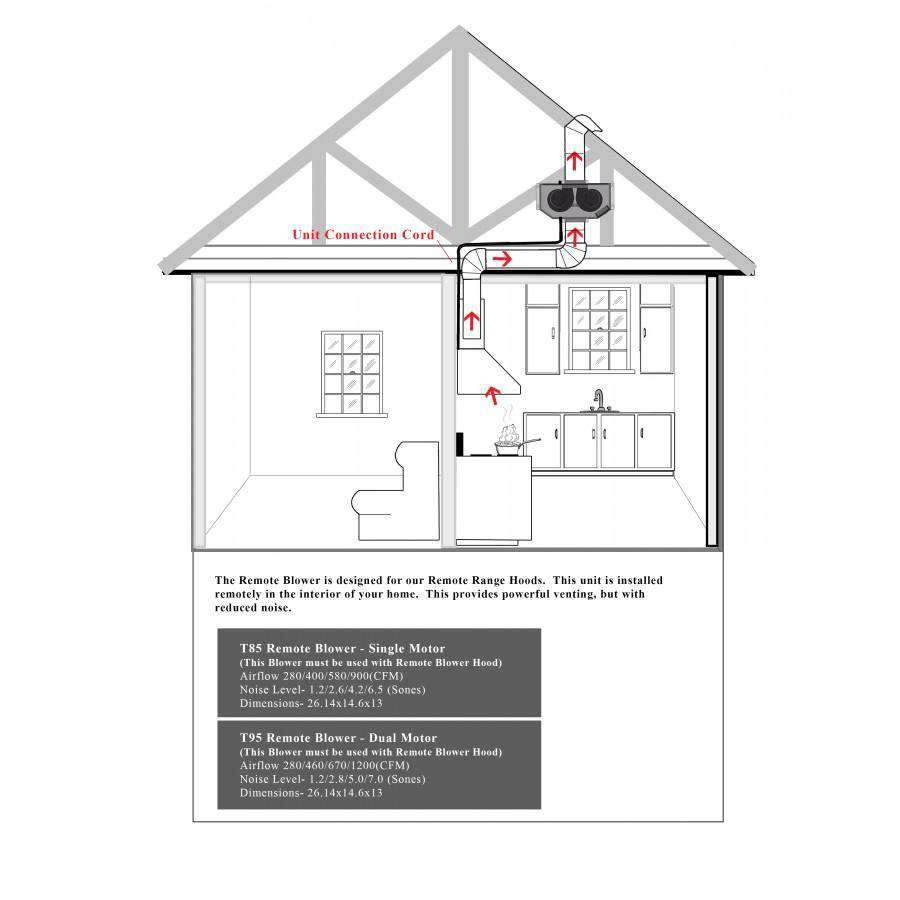

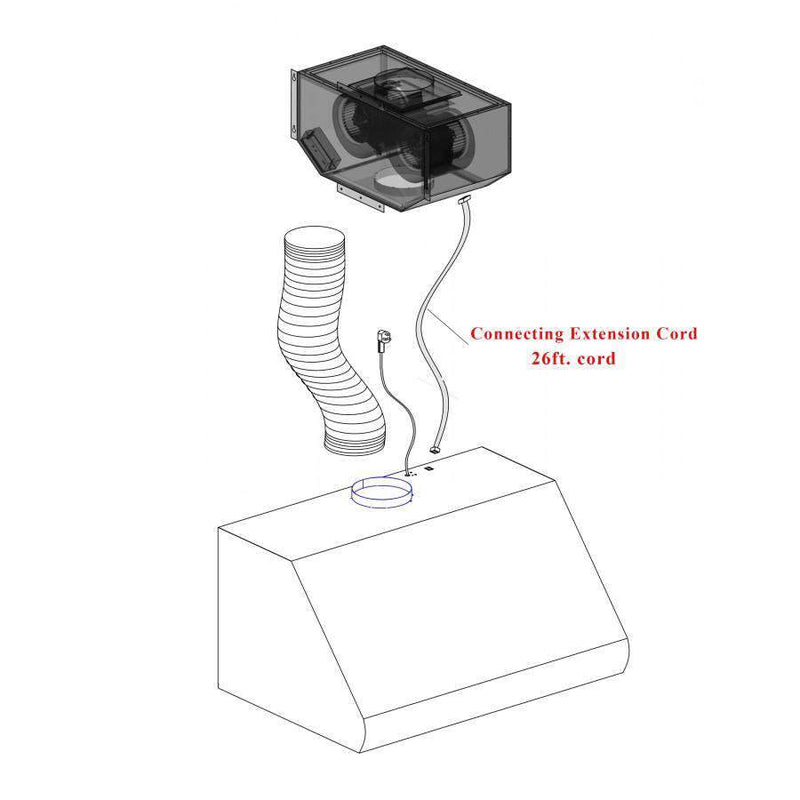

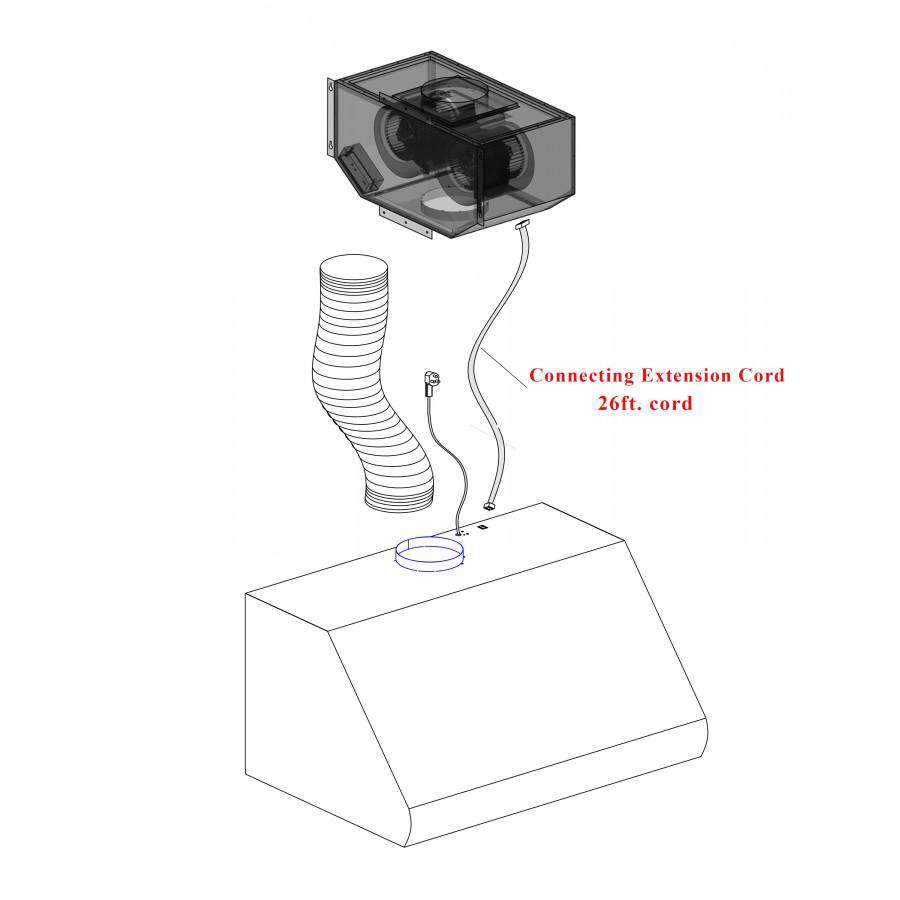

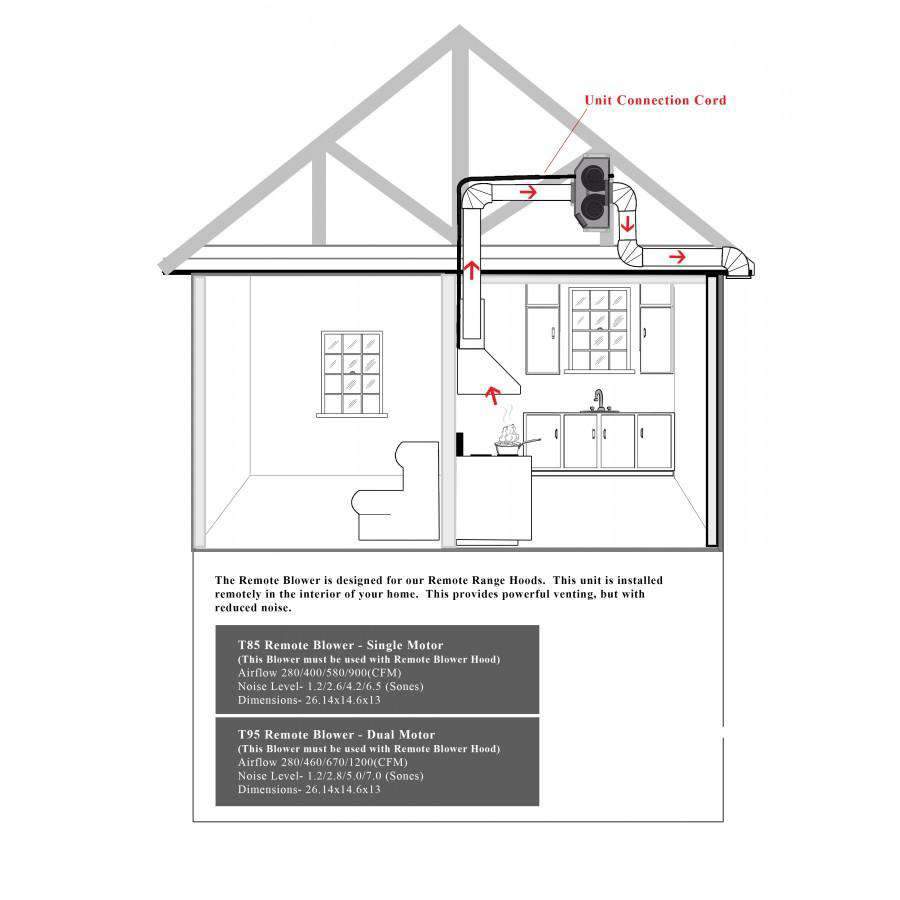

The motor for this hood is remotely installed in an attic or crawl space to provide powerful venting with significantly reduced noise in your kitchen. Modern features, including built-in lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this hood a simple, enjoyable experience for years to come. ZLINE Hoods are ETL Listed and have one of the easiest installations in the industry. Includes two(2)-16 in. telescoping chimney pieces for approximately 8-9 ft. ceilings. Chimney Short Kits and Extensions (not included) are available for shorter or taller ceilings.

ZLINE continues to revolutionize the industry by providing our customer with Attainable Luxury®. ZLINE stands by all products with its Manufacturer Parts Warranty.

This hood contains many unique features, such as:

  • Maintain a powerful range hood without the noise - our remote motor is installed in an attic or crawl space rather than the kitchen to reduce noise

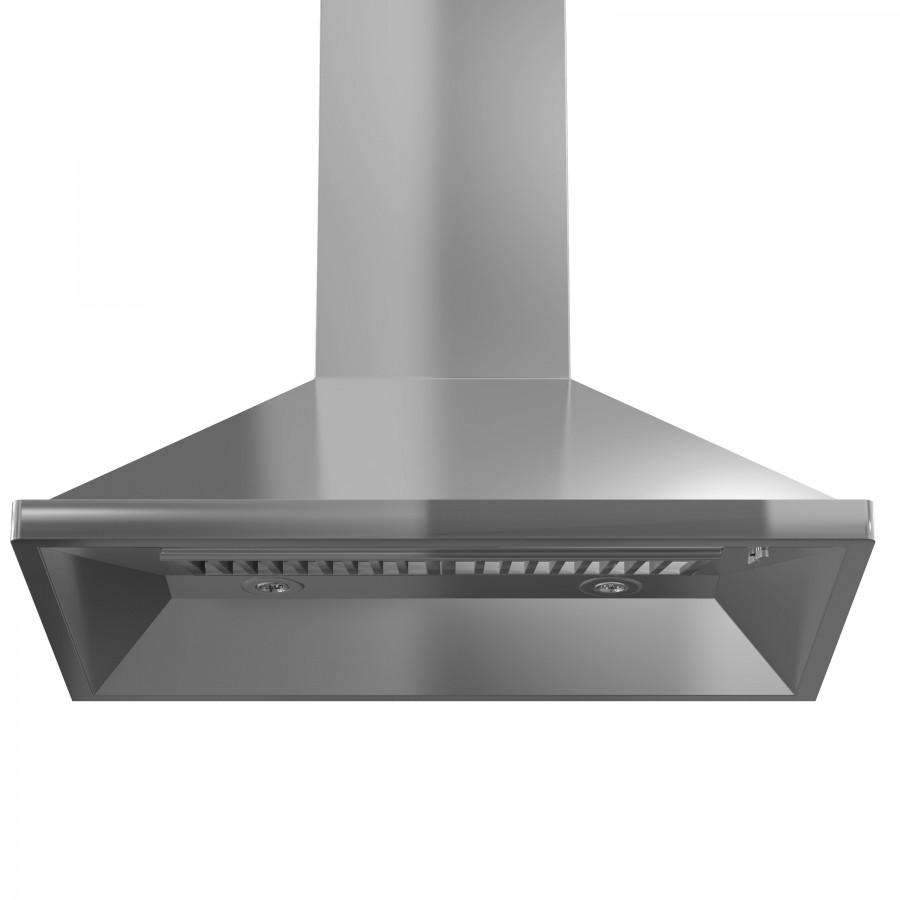

  • Dishwasher-safe stainless steel baffle filters
  • Built-in LED lighting
  • High performance 4-speed motor with speeds up to 400 CFM

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For ceilings shorter than 8 feet, or taller than 9 feet, see table below for detailed options.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods. The 696-RS-36-400 ships next business day when in stock.

OPTIONS & ACCESSORIES

  • Ductless/Recirculate Option - No
  • Ceiling Heights Options:
    • Less 8’ - Require Short Kit SK-696
    • 8’ to 9' - No Ext or Short Kit required
    • 9' to 10’ - Require Ext 1PCEXT-696
    • 10' to 12’ - Require Ext 2PCEXT-696
    • Crown Molding(s) -NA
  • Certified Outdoor Use - No
Brand: ZLINE Kitchen and Bath

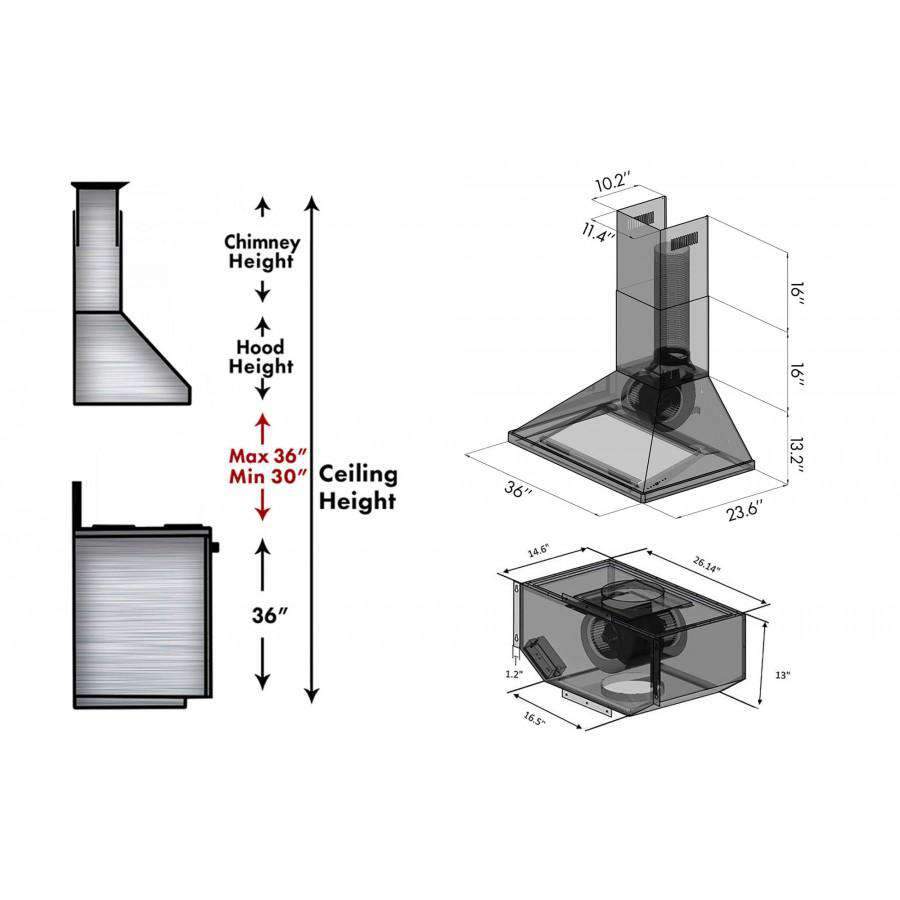

Dimension: 36 in. W x 23.6 in. D x 13.2 in. H
Chimney: 11.4 in. W x 10.2 in. D x 16 H (x2) (Telescoping)

Chimney Short Kit and Extension(s) Available:
Short Kit (2-12") ~7-8 ft. Ceilings
1 PC Extension (1-36" + 1-16") ~9-10 ft. Ceilings
2 PC Extension (2-36") ~10-12 ft. Ceilings
Venting Size: 6" Outlet (Transition piece with backdraft damper to round ducting included)
Airflow (Q/L/M/H): T85-400 Single Remote Blower 120/240/320/400
Lighting: 2 Directional LED Lights (3-Watt)
Noise Level:
20/29/34/41
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted / Remotely Installed Blower
Speeds: 4 Speeds
Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher-safe)
Material: 21g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Features: Model No. 696-RS-36-400 (ETL Listed)
UPC: 817299023180
Certifications: ETL Certified



Range Hood Decibel Levels



ZLINE Range Hoods are supposed to be seen, not heard. That’s why even at the highest speed our range hoods only reach 56 decibels, which is quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.


Chimney Sizing

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size. Watch the video to learn more about sizing your chimney.
